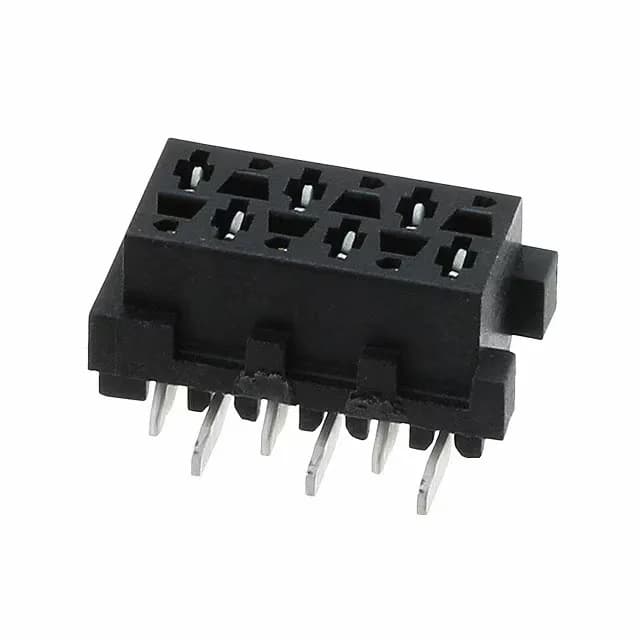

TE Connectivity AMP Connectors 7-2178711-6
MPN7-2178711-6
Obsolete
$3.3000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -30°C~85°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
