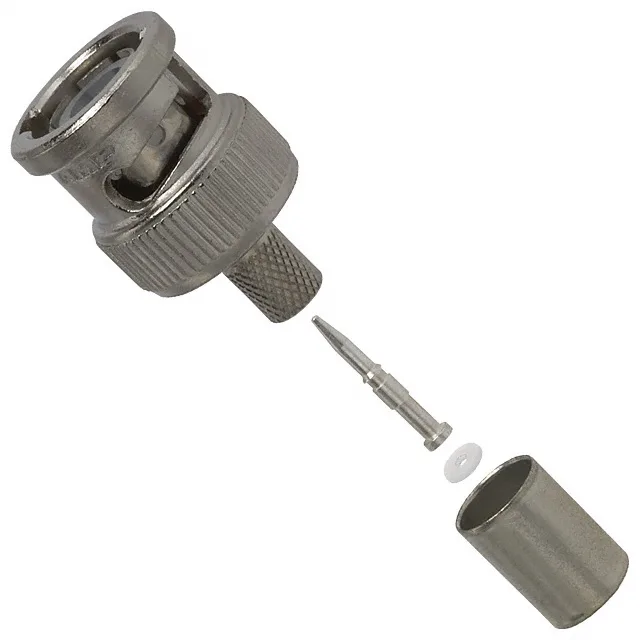

7-227079-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 7-227079-2 BNC Plug, 50 Ohm, 4 GHz, RG-59/62

MPN7-227079-2
Obsolete

TE Connectivity BNC plug, male pin, 50 Ohm, 4 GHz, crimp termination, RG-59/62 cable group, gold center contact, bayonet lock, bulk.

$3.9100Ref. price · indicative, final on quote
7-227079-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

7-227079-2 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-59, 59A, 59B, 62, 62A, 62B
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Spacer
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

It is a field-installable kit that includes the connector body, crimp contact, ferrule, and spacer — four pieces total, one connector per assembly. The bayonet lock gives quick connect/disconnect with positive retention, standard for BNC interfaces in video distribution, test equipment, and telecom patch panels.

This plug accepts RG-59, RG-62, and their lettered variants.

Insertion loss is specified at 0.2 dB, which is clean for a passive BNC plug at video frequencies. The gold-plated brass center contact and nickel-plated brass body resist corrosion over 500 mating cycles — a solid durability figure for test-bench or patch-panel reconnection duty. The polyethylene dielectric maintains consistent impedance through the connector body.

Lifecycle status — obsolete, sourced to order

TE Connectivity lists the 7-227079-2 as Obsolete. No official replacement part number is recorded in the lifecycle entry.

Frequently asked questions

What cable group does 7-227079-2 support?

The 7-227079-2 supports RG-59, RG-59A, RG-59B, RG-62, RG-62A, and RG-62B cables. Both the center contact and shield are crimp-terminated.
