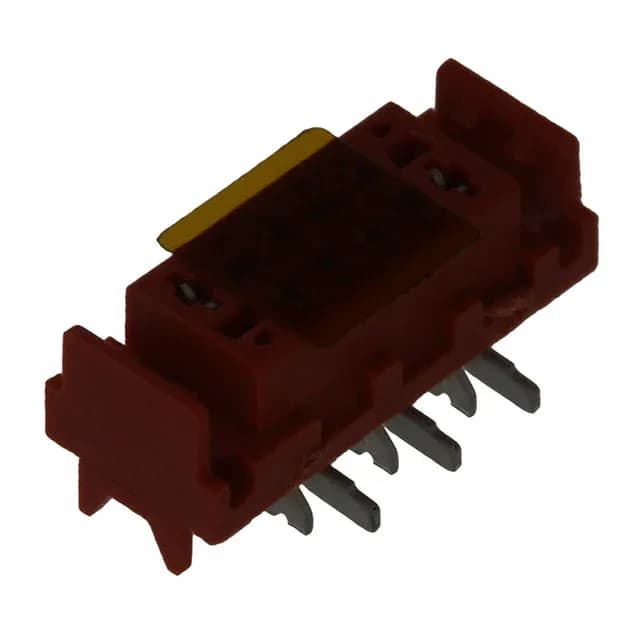

TE Connectivity AMP Connectors Micro-MaTch series, 6-position dual-row SMD receptacle, 0.100" (2.54 mm) pitch, tin-plated forked contacts, friction lock, UL94 V-0, -40°C to 105°C, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 7-338069-6 is a 6-position, dual-row surface-mount receptacle from TE's Micro-MaTch series. Its 0.100-inch (2.54 mm) pitch matches the standard 0.100-inch grid, so the board footprint aligns with common routing patterns and via spacing. The tin-plated forked contacts are rated for general-purpose signal duty.
That means no manual handling during high-volume assembly — the reel feeds directly into the placement machine.
The specific mating header part number depends on your orientation and termination requirements — check the Micro-MaTch header family for a 6-position, 0.100-inch pitch, dual-row pin header with a compatible friction lock.
Yes, the 7-338069-6 is ROHS3 compliant and listed for automotive and general-purpose applications.
