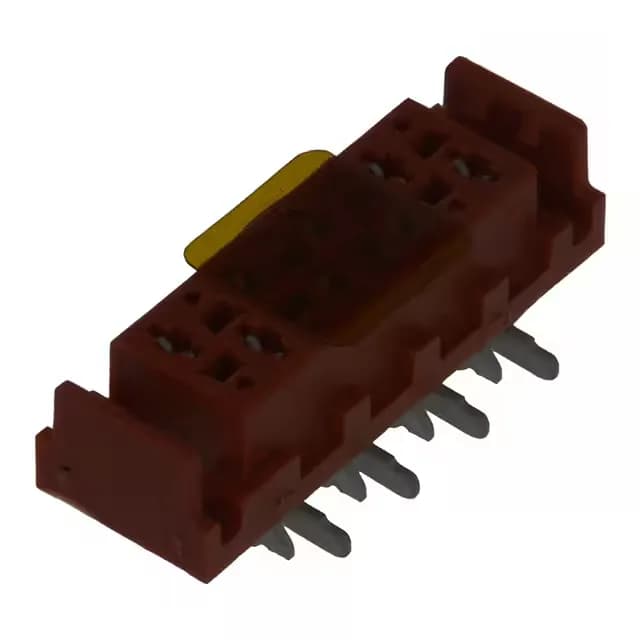

TE Connectivity AMP Micro-MaTch receptacle, order code 7-338069-8, 8 positions, dual row, 2.54 mm pitch, 100 VDC, tin-plated mating contacts, surface-mount, solder termination, friction lock.
TE 7-338069-8 Micro-MaTch Receptacle, 8 Pos 2.54mm
MPN7-338069-8
Active
TE Connectivity AMP Micro-MaTch receptacle, order code 7-338069-8, 8 positions, dual row, 2.54 mm pitch, 100 VDC, tin-plated mating contacts, surface-mount, solder termination, friction lock.
$2.2200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the style of the 7-338069-8 connector?
The listed style is Board to Board or Cable.
