TE Connectivity AMP Connectors 7-338728-4 — Pin Headers

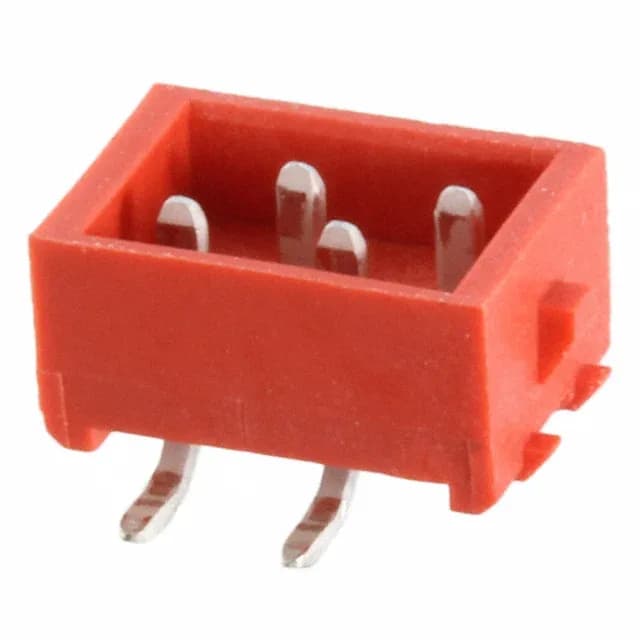

7-338728-4 TE Connectivity Micro-MaTch Header SMD 4POS

MPN7-338728-4
Active

TE Connectivity AMP Connectors Micro-MaTch header, 7-338728-4, SMD, 4 positions, 2 rows, 0.100" (2.54 mm) pitch, shrouded 4-wall, latch lock, tin-plated contacts, 1.5 A, 230 V, UL94 V-0, -40°C to 105°C

$1.9000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

7-338728-4 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.181\" (4.60mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled

All specifications

7-338728-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

2.54 mm pitch SMD header with latch lock

The latch lock fastening type holds the mating receptacle securely — useful in applications where the connector pair sees vibration or incidental cable pull.

Board-mount and termination details

Surface-mount termination with pick-and-place compatible packaging (Tape & Reel, Cut Tape).

Comparison with peer 1-1871673-2

It carries a copper alloy contact with thinner tin plating (0.80 µm) and its current rating depends on wire gauge. The 7-338728-4 offers a fixed 1.5 A rating, SMD assembly, and a latch lock — choose the SMD version for automated pick-and-place and the through-hole version for manual assembly or when board-lock retention is needed.

Frequently asked questions

What is the mating connector for 7-338728-4?

The mating half is a Micro-MaTch receptacle (female) with 4 positions, 2.54 mm pitch, latch lock compatible. Confirm the specific receptacle part number from the same series.

Is 7-338728-4 RoHS compliant?

Yes, it is RoHS compliant.
