TE Connectivity AMP Connectors 7-338728-6 — Pin Headers

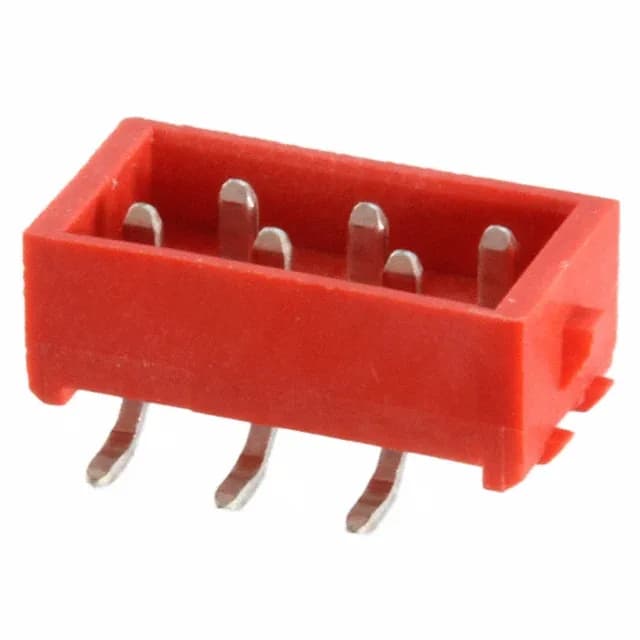

7-338728-6 TE Connectivity Micro-MaTch Header SMD 6 Pos

MPN7-338728-6
Active

TE Connectivity AMP Connectors Micro-MaTch header, 7-338728-6, 6 positions, 2.54 mm pitch, shrouded SMT, latch lock, tin contacts, 1.5 A, 230 V, UL94 V-0

$2.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

7-338728-6 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.181\" (4.60mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled

All specifications

7-338728-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

6-position SMT header with latch lock

The 7-338728-6: The 2.54 mm pitch sets the PCB footprint and the per-contact current ceiling — at 1.5 A the temperature rise stays within the PA46 housing limits. The latch lock gives a positive retention click, so you know the mating half is seated and won't back out under vibration. Surface-mount termination with pick-and-place features means it runs through standard reflow assembly.

What the 1.5 A rating means for your circuit

Rated 1.5 A per contact at 230 V, with tin-plated mating surfaces at 118.1 µinch thickness. The 105 °C operating ceiling is typical for general-purpose electronics inside an enclosure.

Frequently asked questions

Is 7-338728-6 RoHS compliant?

Yes, ROHS3 compliant.

What is the mating connector for 7-338728-6?

This header mates with a Micro-MaTch receptacle housing that accepts the corresponding crimp terminals. The latch lock feature is on the header side; the receptacle must have the matching latch ramp for positive retention.

What is the pinout of 7-338728-6?

Dual-row, 6 positions, all positions loaded. The pinout follows the standard Micro-MaTch footprint — confirm the mating receptacle's keying and orientation from the product drawing.
