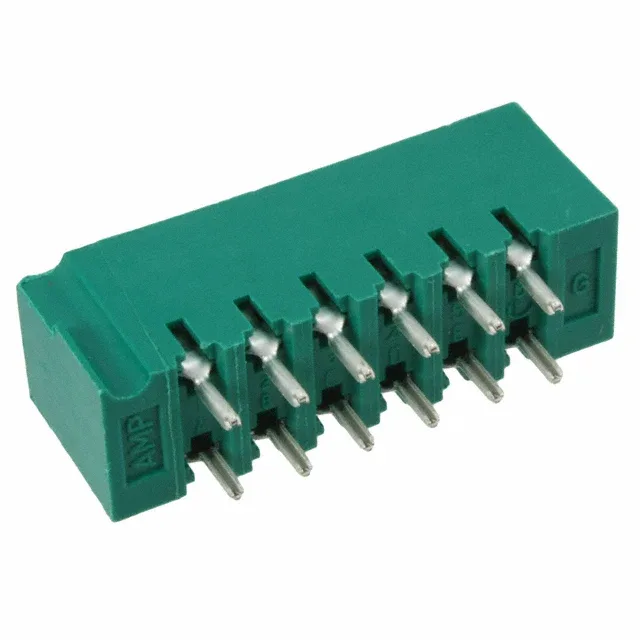

TE Connectivity AMP Connectors 7-530666-1
MPN7-530666-1
Active
CONN EDGE DUAL FMALE 12POS 0.156
$7.43Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Card type | Non Specified - Dual Edge |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Material - insulation | Polyester, Glass Filled |
| Pitch | 0.156\" (3.96mm) |
| Gender | Female |
| Package | Tray |
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.055\" ~ 0.070\" (1.40mm ~ 1.78mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 12 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions (Bay, row) | 6 |
