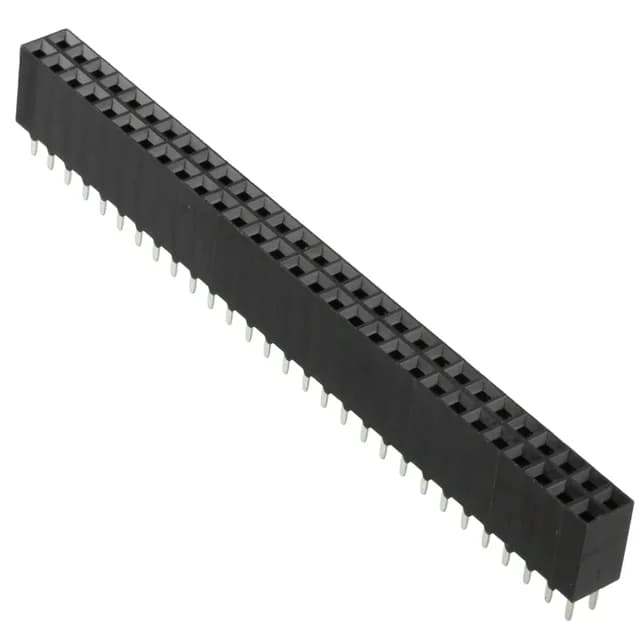

7-534206-9 TE Connectivity AMPMODU Mod II 58-Position

MPN7-534206-9
Active

TE Connectivity AMP Connectors AMPMODU Mod II series, 58-position dual-row receptacle, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated female square sockets, rated 2A per contact, UL94 V-0 black polyester housing.

$8.4334Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 7-534206-9 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

7-534206-9 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Current rating2A
Operating temperature-65°C ~ 125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.320\" (8.13mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

7-534206-9 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions58
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.115\" (2.92mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

58-Position Dual-Row Signal Receptacle

Tin-plated solder tails (150.0µin) keep the board-level interface cost-effective.

At 58 positions across two rows spaced 0.100 inches apart, this receptacle demands a board footprint roughly 2.9 inches long.

The base product number 534206 covers the series variants; the full 7-534206-9 suffix specifies the 58-position, gold-plated, tube-packaged configuration.

The push-pull fastening type provides secure retention without a locking latch — suitable for low-vibration environments where the connector is accessed periodically.

Frequently asked questions

Does 7-534206-9 require a mating header?

Yes — this is a receptacle that mates with a 0.100-inch (2.54mm) pitch square-pin header from the AMPMODU Mod II series. Confirm the header position count and row configuration match the 58 dual-row layout.

What is the current rating of AMPMODU Mod II?

For this 58-position receptacle, the per-contact current rating is 2A.

What is the closest pin-compatible alternative to 7-534206-9?

Within the AMPMODU Mod II series, a 50-position or 60-position variant shares the same 0.100-inch pitch and dual-row layout. Verify the position count and plating grade — gold vs tin — against your application's mating cycle requirement before substituting.
