The 7-535598-2: With 60 positions loaded across two rows at 0.100" pitch, the receptacle body spans roughly 3.0 inches (76.2 mm) along the row — a sizable footprint that demands careful board-edge clearance. The 0.265" (6.73 mm) insulation height leaves room under the connector for trace routing on inner layers. The mating header must be a 0.100" pitch, dual-row, square-pin type with 0.025" square posts — standard AMPMODU Mod IV or compatible headers.

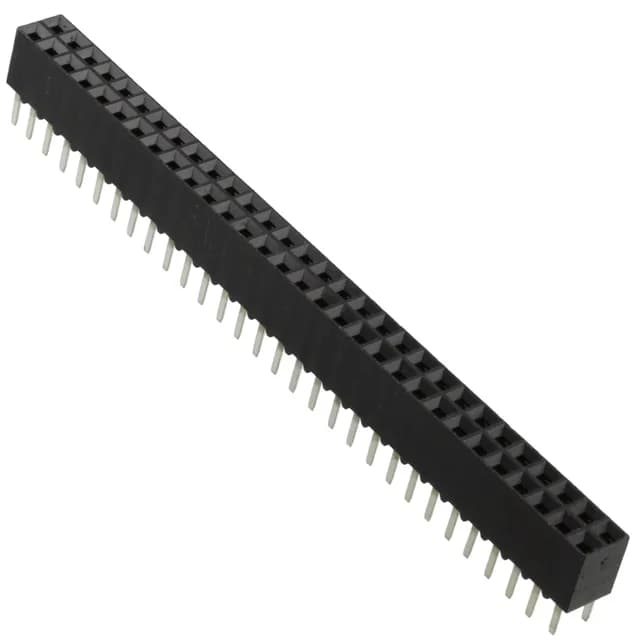

7-535598-2 TE Connectivity AMPMODU Mod IV 60-Position
MPN7-535598-2
Active
TE Connectivity AMPMODU Mod IV receptacle, 7-535598-2, 60 positions, dual-row, 0.100" (2.54 mm) pitch, through-hole solder, gold mating finish, 2 A, UL94 V-0, -65°C~125°C, active production.
$7.5187Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Product details
Frequently asked questions
What series does the 7-535598-2 belong to?
It belongs to the AMPMODU Mod IV series from TE Connectivity. The base product number is 535598, which covers other position counts in the same family.
