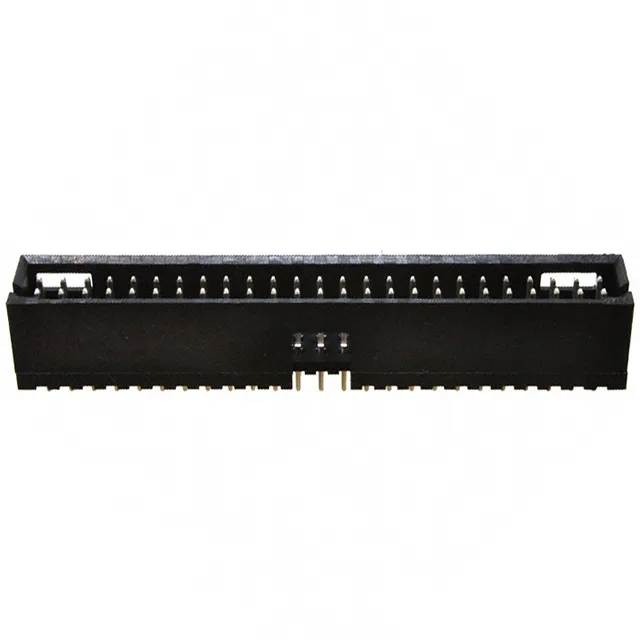

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 7-87589-1, 50 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, tin-plated mating contacts, through hole, solder termination, shrouded - 4 wall.
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 7-87589-1, 50 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, tin-plated mating contacts, through hole, solder termination, shrouded - 4 wall.
$8.8400Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What compliance documentation does TE provide for 7-87589-1?
The insulation material is rated UL94 V-0. RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors per standard product support.
