TE Connectivity AMP Connectors 745185-7
MPN745185-7
Active

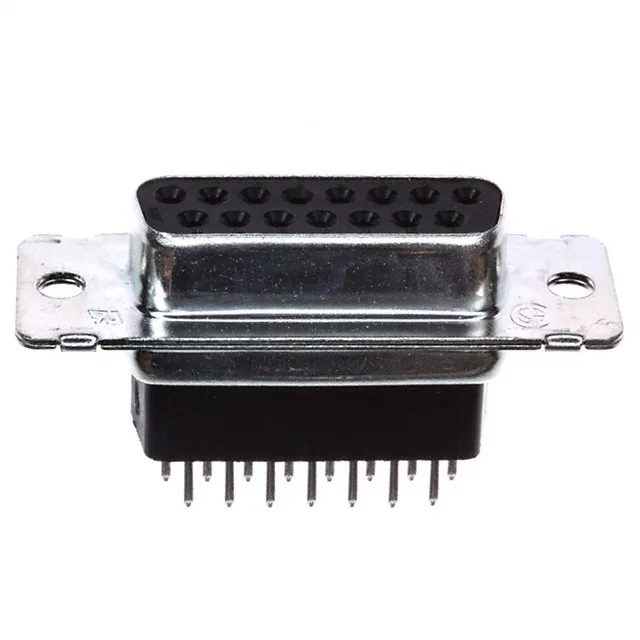

CONN D-SUB RCPT 15POS VERT SLDR
$20.26Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDP-20 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 15 |
| Contact finish thickness | Flash |
