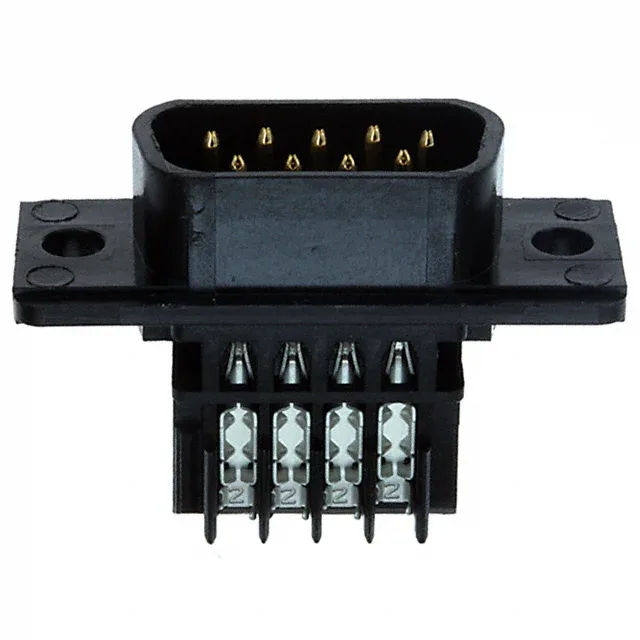

TE Connectivity AMP Connectors 745203-9
MPN745203-9
Active
CONN D-SUB PLUG 9POS IDC
$7.49Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HDE-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDE-20 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Wire gauge | 22-26 AWG |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Termination | IDC, Discrete Wire |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
