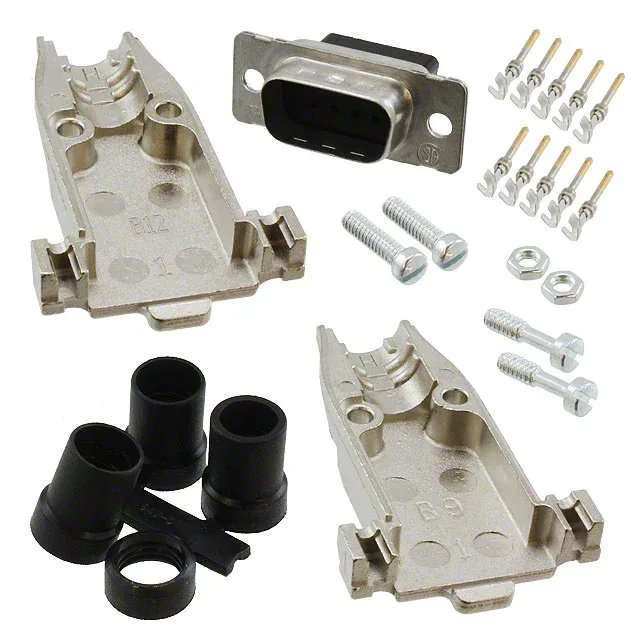

TE Connectivity AMP Connectors 749805-7
MPN749805-7
Active
CONN D-SUB PLUG 9POS CRIMP
$20.04Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDP-20 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Wire gauge | 20-24 AWG |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Grounding Indents, Shielded |
| Termination | Crimp |
| Contact finish | Gold |
| Flange feature | Cable Side, Male Short Screw (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
