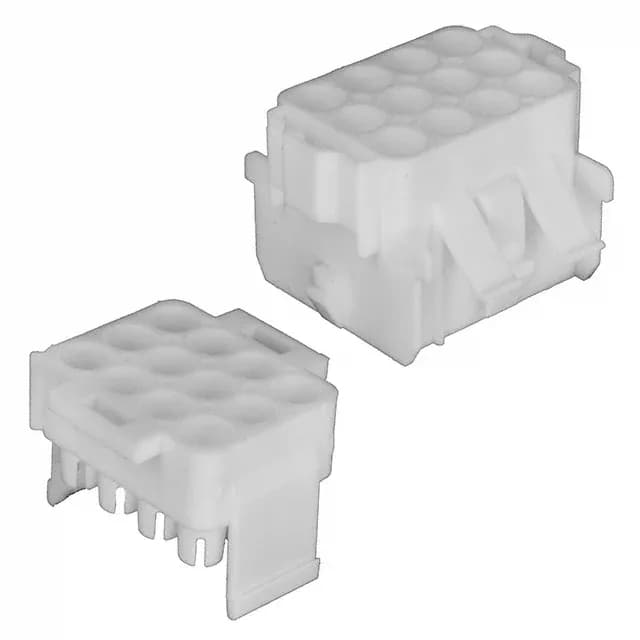

12-Position 3-Row Receptacle Housing for Universal MATE-N-LOK II
The 0.250" (6.35mm) row spacing leaves enough room between circuits for the 20-14 AWG wire range these housings typically accept, keeping the assembly manageable for harness builders.
Panel Mount with Locking Ramp — No Hardware Required
The locking ramp on the mating face engages with the matching plug housing's ramp to create a positive lock that won't shake loose under engine vibration or machine cycling. For field service, the ramp releases with a thumb press on the tab, so the harness can be unmated without tools. The panel mount, snap-in design means the receptacle stays fixed while the plug half carries the cable — useful when the wire harness needs to be removed for equipment access.
Contacts Sold Separately — Plan the Full BOM
The housing accepts both genders, so a single 770029-1 can be loaded as a pin receptacle or a socket receptacle. Standard practice is to stock both the housing and the terminals as a kit, since an orphan housing on the shelf is dead stock until the terminals arrive.
For BOM planning, this is a standard, long-running TE series with no imminent obsolescence concern.
Operating Temperature Range Confirms Harsh-Environment Duty
The wide range means the housing material won't become brittle at cold start or soften under continuous cabinet heat. No separate retainer is required — the locking ramp and the contact retention tamps in the cavity hold the terminals in place without an additional TPA (terminal position assurance) component.
