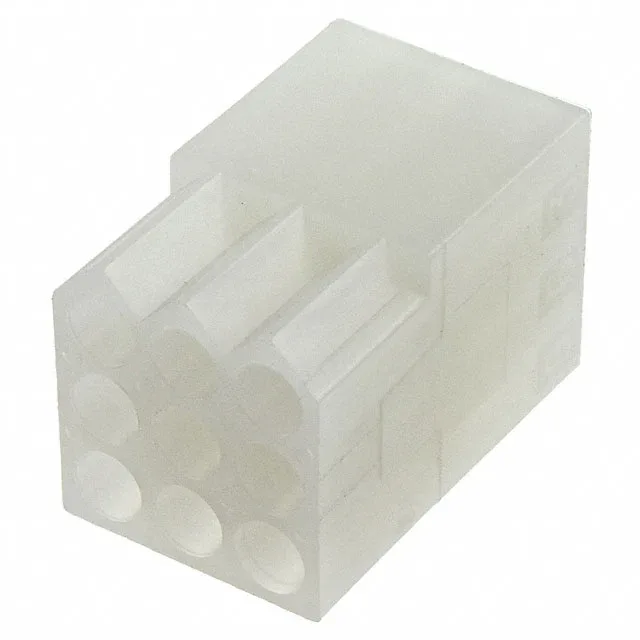

770094-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

770094-1 TE Connectivity 9-Position 5.03mm Receptacle

MPN770094-1
Active

TE Connectivity AMP Connectors Commercial.093" Pin and Socket series, 770094-1, 9-position receptacle housing, 0.198" (5.03mm) pitch, 3 rows, natural polyamide, free-hanging, crimp termination, contacts not included.

$1.3000Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

770094-1 Technical Specifications
ParameterValue
SeriesCommercial .093\" Pin and Socket
GenderMale or Female
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.198\" (5.03mm)
PackageBulk
Row spacing0.198\" (5.03mm)
Rows3
Contact terminationCrimp
Positions9

Product details

The 770094-1 is a 9-position receptacle housing from the Commercial.093" Pin and Socket series, pitched at 0.198" (5.03mm) across three rows. Contacts are not included. You order the terminals separately — the housing is just the nylon shell.

Sourcing and lifecycle posture

ROHS3 compliant, bulk packaged. No known successor or cross-reference within the series — this is the standard 9-position receptacle housing for the.093" pin and socket family.

Pitch and row spacing — footprint match

Pitch is 0.198" (5.03mm) on both the contact-to-contact axis and the row-to-row axis. Three rows at that spacing means the terminal layout is a 3x3 grid — confirm your mating plug or header matches this pattern before committing the BOM line.

Frequently asked questions

Does 770094-1 include contacts?

No.
