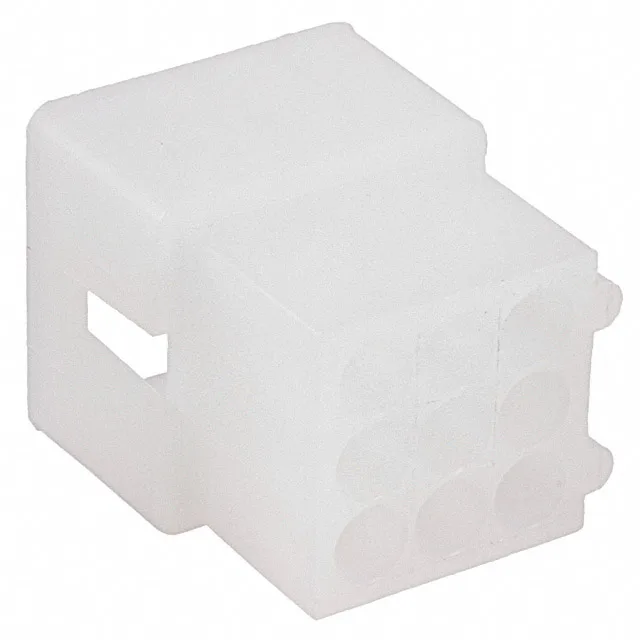

TE Connectivity AMP Connectors Commercial.062" Pin and Socket, 770428-1, plug housing, 9 positions, 3 rows, 0.145" (3.68mm) pitch and row spacing, free-hanging in-line, detent lock, natural nylon, contacts not included.
| Parameter | Value |
|---|---|
| Series | Commercial .062\" Pin and Socket |
| Type | Male or Female |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Detent Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.145\" (3.68mm) |
| Package | Bulk |
| Row spacing | 0.145\" (3.68mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 9 |
The 770428-1 is a 9-position plug housing from TE's Commercial.062" Pin and Socket series, arranged in 3 rows on a 0.145" (3.68mm) pitch with matching row spacing.
The series accepts standard Commercial.062" diameter pins and sockets, crimped with the matching tooling.
The pitch is 0.145" (3.68mm), and the row spacing is the same at 0.145" (3.68mm).
Yes, the housing uses a detent lock for positive retention. Row spacing is 0.145" (3.68mm).
