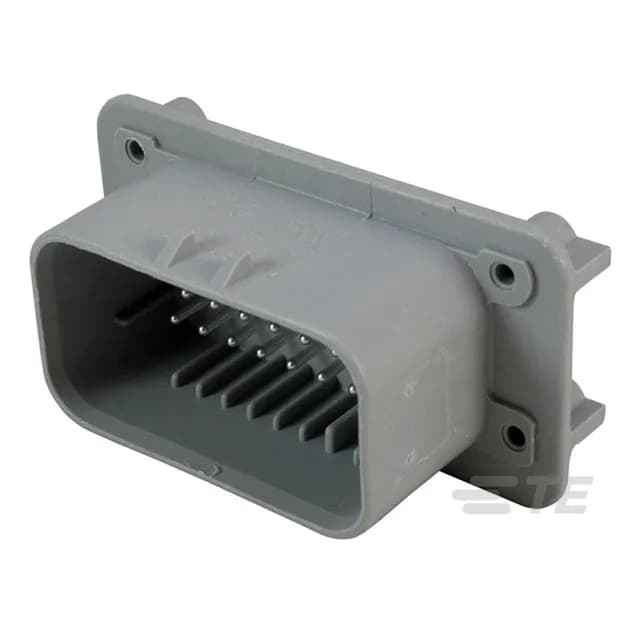

TE Connectivity AMPSEAL header, order code 770669-4, 23 positions, 3 rows, 4.00 mm pitch, 250 VAC, tin-plated mating contacts, panel mount through-hole right-angle, solder termination, shrouded - 4 wall, sealable.
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Sealable |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 23 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
The 770669-4 is the 23-circuit member of TE's AMPSEAL header line, a sealable board-to-cable/wire connector with a shrouded 4-wall housing.
Panel-mount, through-hole, right-angle orientation with a locking ramp fastening system; the housing includes a board guide and is sealable, suited for automotive and industrial environments.
