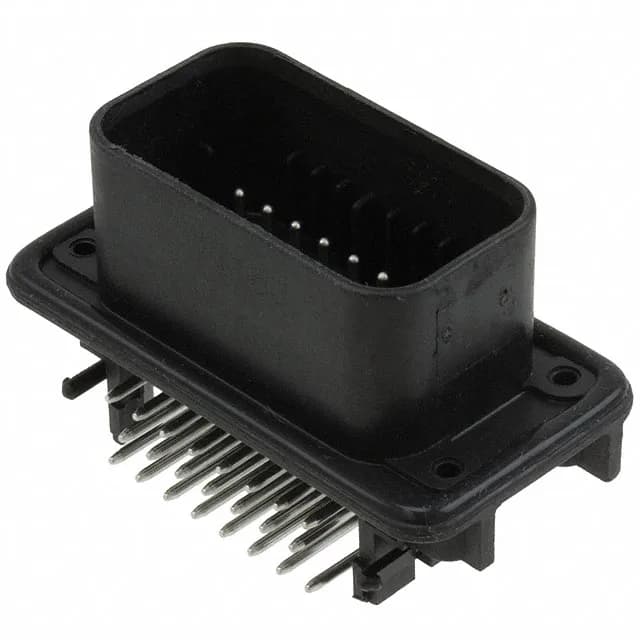

23 positions, 4.00mm pitch, right-angle sealed header
It uses a 4.00mm pitch and row spacing, setting the PCB footprint and the mating interface for the corresponding AMPSEAL plug. Panel-mount flanges and through-hole solder tails secure the header to both the board and the panel cutout. The sealed construction (board guide, sealed) and PBT glass-filled housing with UL94 V-0 rating support this duty.
Mating and termination specifics
Mates with the AMPSEAL plug (female connector) using the same 4.00mm pitch and 23-position, 3-row layout. Termination is through-hole solder to the PCB. For 20-22 AWG wire, expect 5-7 A per contact at 30°C rise in still air.
RoHS compliant. Available in bulk packaging.
