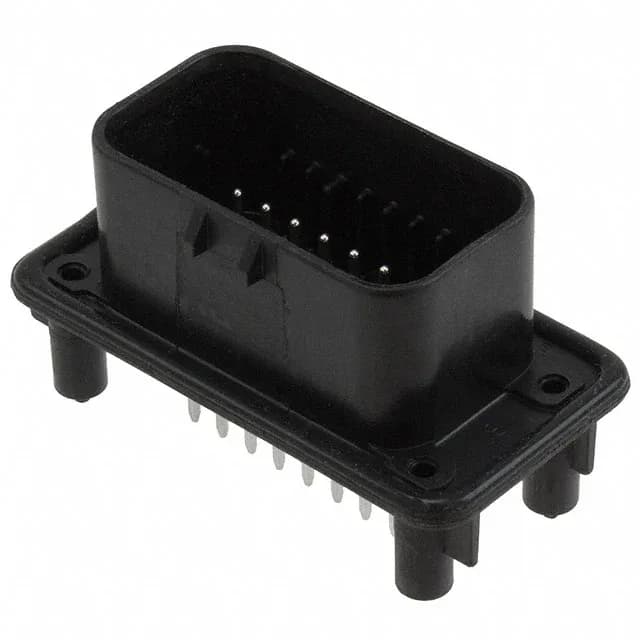

TE Connectivity AMPSEAL, Board to Cable/Wire, Header, Male Pin, 23 Positions, 3 Rows, 0.157" (4.00mm) Pitch, Solder Termination, Panel Mount, Through Hole, Sealed, Shrouded - 4 Wall, Locking Ramp, -40°C ~ 105°C, 250VAC
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mounting Flange, Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 23 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
The mating pitch is 0.157" (4.00mm) with an identical row spacing of 0.157" (4.00mm), giving a consistent grid for PCB layout. All 23 positions are loaded. Mounting is panel mount combined with through-hole solder termination. The header includes a mounting flange for secure panel attachment and is sealed to prevent ingress.
Yes, the 776228-1 is a sealed header. It features a mounting flange and is listed as sealed, making it suitable for automotive and industrial applications where moisture or dust ingress is a concern.
The 776228-1 is a male pin header from the AMPSEAL series. It mates with a corresponding AMPSEAL receptacle housing that accepts the same 4.00mm pitch and 3-row layout. Confirm the receptacle part number with your harness design.
