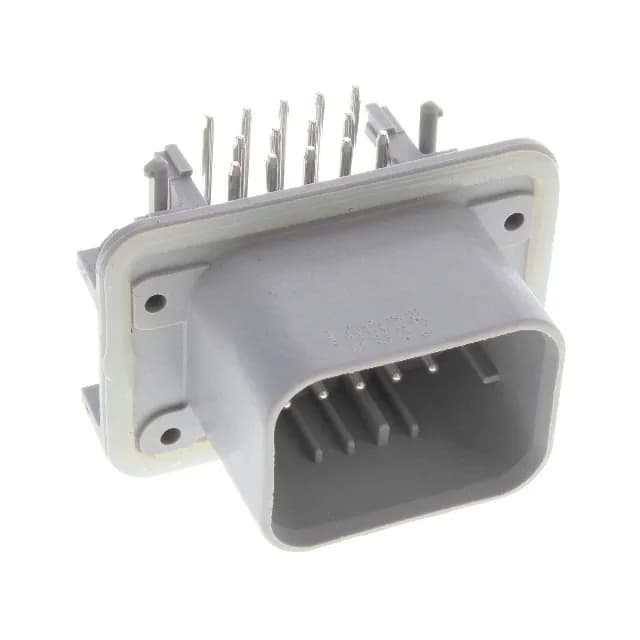

14-position, 4.00 mm pitch – AMPSEAL sealed header for automotive harnesses
The header mates with the AMPSEAL receptacle (typically 776266-1 or 776266-2 series) to form a sealed connection rated for automotive and industrial environments. The locking ramp provides positive retention — you'll hear and feel the latch engage, which matters in applications where vibration can back out unlatched connectors.
Shrouded 4-wall protection and board guide for reliable assembly
The integrated board guide aligns the header during placement, reducing the risk of skewed insertion on the PCB. The sealable feature means the header accepts a panel gasket (sold separately) to achieve IP67 when mated with the correct receptacle — critical for under-hood and washdown applications. The gray insulation color is standard for AMPSEAL headers, making visual inspection of the mating interface straightforward.
Tin-plated contacts – matched to the application duty cycle
The male pins are tin-plated brass — a cost-effective choice for applications with fewer than 25 mating cycles. Tin works well in sealed environments where the contact interface is protected from oxidation.
