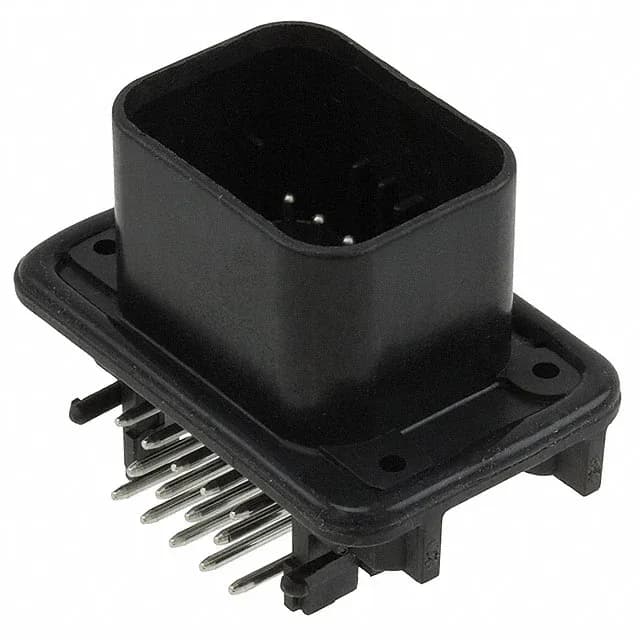

776267-1 TE AMPSEAL Header R/A 14POS 4mm Sealed

MPN776267-1
Active

TE Connectivity AMPSEAL 776267-1, right-angle header, 14 circuits, 4.00 mm pitch, sealed, shrouded 4-wall, locking ramp, panel mount through-hole, -40°C to 105°C, tin-plated male pins.

$10.2300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPSEAL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

776267-1 key specifications
ParameterValue
SeriesAMPSEAL
TypeMale Pin
MountingPanel Mount, Through Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
StyleBoard to Cable/Wire

All specifications

776267-1 additional specifications
ParameterValue
PackageBulk
FeaturesBoard Guide, Sealed
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeCircular
Rows3
Pitch0.157\" (4.00mm)
Positions14
Row spacing - mating0.157\" (4.00mm)
Contact finish - matingTin

Product details

Right-angle sealed header for underhood harnesses

The 776267-1 is a 14-position, 3-row, right-angle header from the TE AMPSEAL series, designed for sealed board-to-cable/wire connections in automotive and industrial environments. Its 4.00 mm pitch and 0.157" row spacing create a uniform grid for the PCB footprint, and the locking ramp fastening provides a vibration-resistant mate without a secondary CPA.
