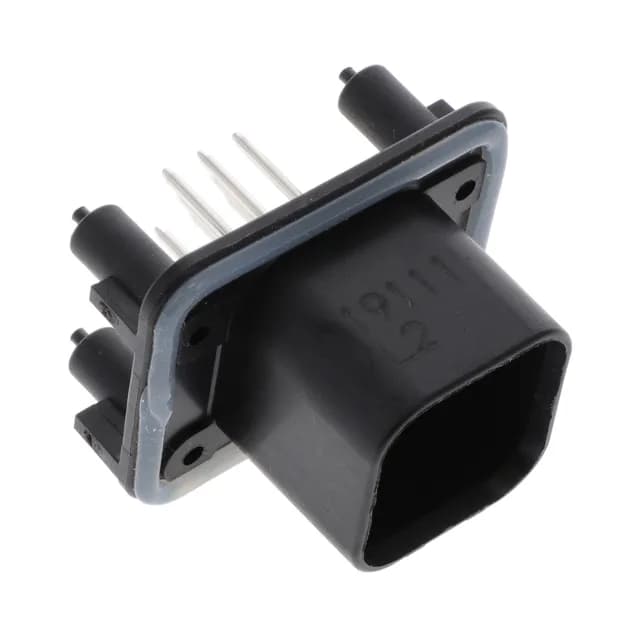

TE Connectivity AMP Connectors AMPSEAL series, Board to Cable/Wire header, 8 circuits, 3 rows, 4.00mm pitch, shrouded - 4 wall, locking ramp, sealed, panel mount through hole, tin contacts
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mounting Flange, Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
The 776276-1 is an 8-position, 3-row header from the TE AMPSEAL series, on a 4.00mm pitch. It mates with the matching AMPSEAL receptacle for a sealed board-to-cable connection.
This header is sealed and includes a mounting flange for secure panel attachment.
The 776276-1 is an 8-position, 3-row header. All positions are loaded. The pinout follows the standard AMPSEAL row arrangement — confirm the mating receptacle's keying and circuit layout for your harness.
