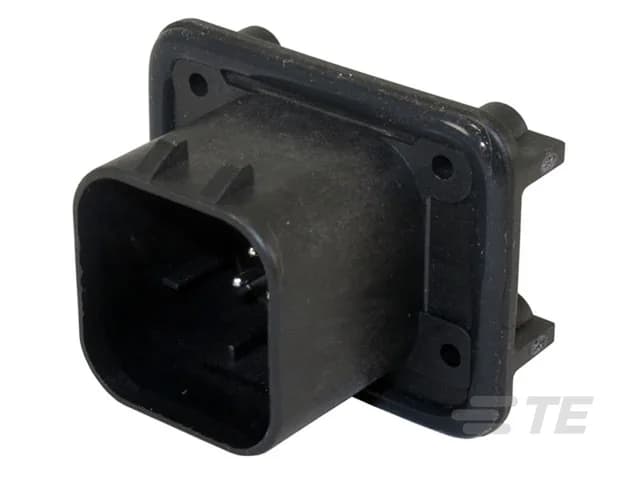

TE Connectivity AMPSEAL header, order code 776280-1, 8 positions, 3 rows, 0.157" (4.00mm) pitch, 250 VAC, tin-plated male pins, panel mount through-hole right-angle, solder termination, shrouded - 4 wall, sealed.
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
The 776280-1 is the 8-circuit member of TE's AMPSEAL header line, a shrouded 4-wall sealed header with a locking ramp for vibration-resistant mating. Rated 250 VAC, the header carries tin-plated male pins on a 0.157" (4.00mm) pitch across three rows and mounts panel-mount through-hole right-angle with solder termination.
Available in bulk packaging. Quoted to order against BOM quantity; availability confirmed at RFQ.
