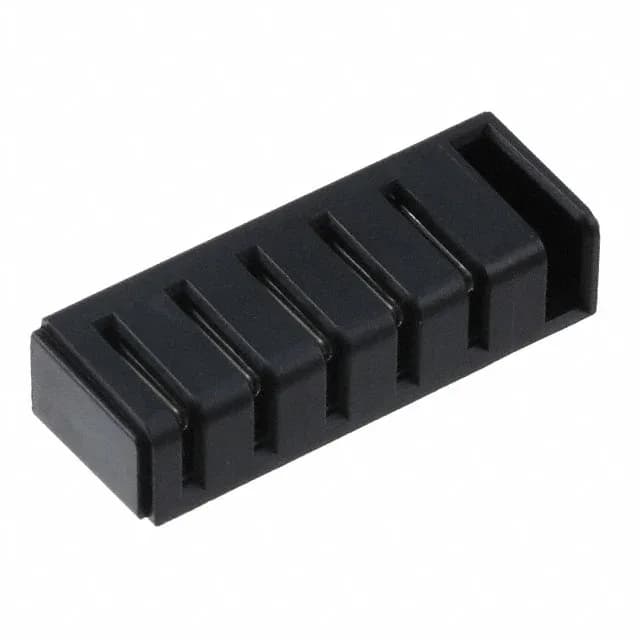

5-Position Battery Receptacle at 5.00 mm Pitch
Rated 7 A per circuit, each blade socket carries the main battery current — sized for the DC rail, not a signal line. The right-hand keying ensures the receptacle only mates with a right-hand keyed header, preventing polarity reversal in the harness.
SMD Termination and Keying for Board-Level Assembly
Surface-mount termination (SMD) places this receptacle directly on the PCB, eliminating through-hole solder joints and reducing assembly steps in automated pick-and-place lines. The push-pull fastening type gives a positive tactile mate without a secondary locking ramp — suited for harness connections inside an enclosure where vibration is moderate. Operating temperature from -30°C to 70°C covers indoor consumer and light industrial environments, but not extended automotive underhood duty.
