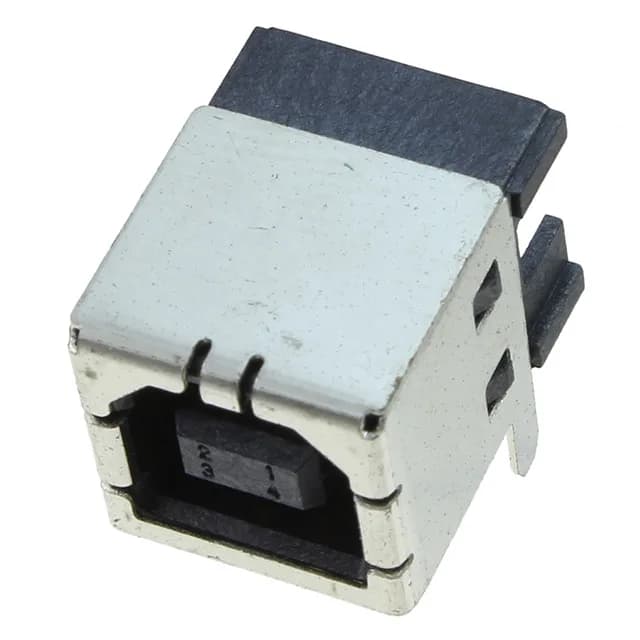

USB-B Receptacle for Board-Edge Integration
This part is now classified as Obsolete by the manufacturer.
Board Layout and Orientation
The 4 through-hole solder tails provide mechanical retention and electrical connection; the shielded copper alloy shell adds EMI containment around the differential signal pair.
Durability and Contact Finish
The 1A per contact rating is standard for USB 2.0 power delivery; the 30VAC voltage rating covers the USB VBUS line.
Sourcing Reality for an Obsolete Part
For BOM lines that call out this exact part, supply is limited to surplus and broker-channel inventory. If a form-fit-function replacement is needed, the base product number 787924 may point to other variants in the same family, but no direct pin-compatible substitute is named in the available documentation.
