TE Connectivity AMP Connectors 788130-1
MPN788130-1
Active

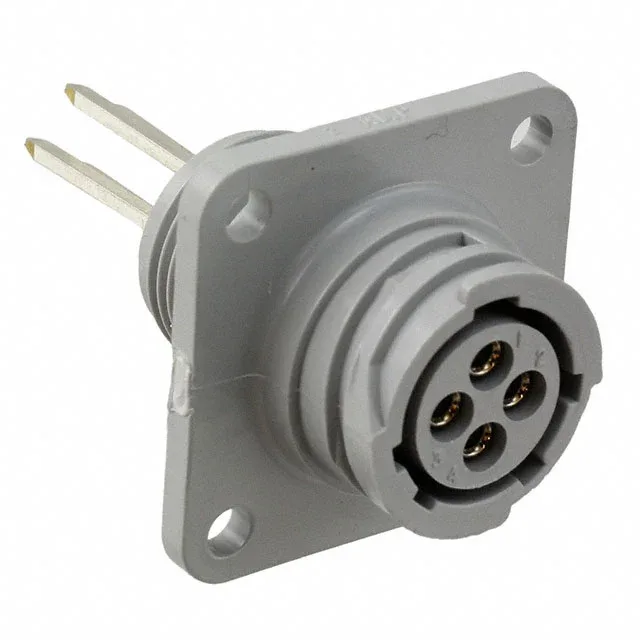

CONN RCPT FMALE 4P TIN-LEAD SLDR
$16.83Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesCPC Series 1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CPC Series 1 |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 250VAC/DC |
| Mounting feature | Flange |
| Operating temperature | -55°C ~ 105°C |
| Shell material | Thermoplastic |
| Contact material | Brass |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Orientation | A |
| Termination | Solder |
| Positions | 4 |
| Shell size - insert | 11-4 |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
