Right-angle 22-position header for board-to-wire harnesses

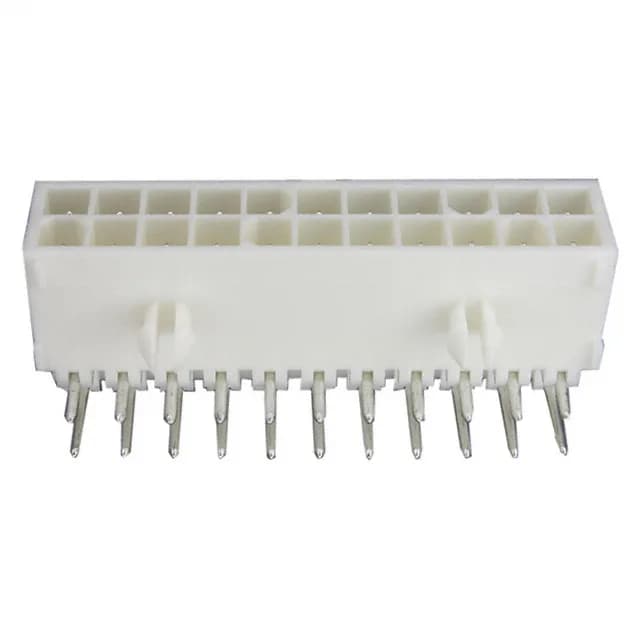

The 794107-1: This is a 22-circuit, dual-row header from the Mini-Universal MATE-N-LOK series, designed for board-to-cable/wire applications. The shrouded 4-wall header protects the male pins during handling and guides the mating receptacle into alignment.
Locking ramp and board lock for vibration resistance
Operating temperature range is -20°C to 85°C, covering most indoor industrial and commercial environments.
Active production — sourcing and compliance
Sourced through independent distribution; quoted to order against BOM quantities.
Mating with Mini-Universal MATE-N-LOK receptacles
This header mates with Mini-Universal MATE-N-LOK receptacle housings that accept crimp terminals. The 22-position dual-row layout requires a matching 22-circuit receptacle; the locking ramp on the header engages the latch on the receptacle housing. The male pins are circular, brass, with 150 µinch tin-lead plating on the mating area — rated for moderate mating cycle duty. For higher cycle life or corrosive environments, consider the gold-plated variants in the same series.
