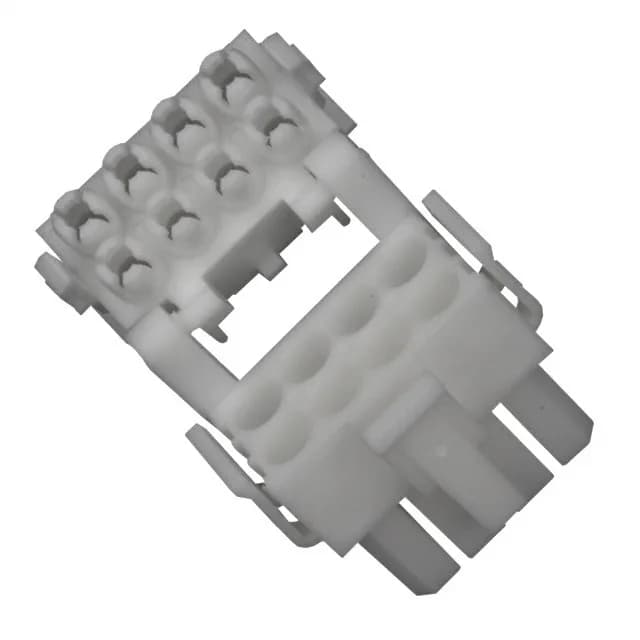

TE Connectivity Mini-Universal MATE-N-LOK II, Plug Housing, 8 Position, 0.163" (4.14mm) Pitch, 2 Row, Natural, Latch Lock, Free Hanging, Crimp Termination, Contacts Not Included.
| Parameter | Value |
|---|---|
| Series | Mini-Universal MATE-N-LOK II |
| Type | Male or Female |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Color | Natural |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.163\" (4.14mm) |
| Package | Bulk |
| Row spacing | 0.163\" (4.14mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 8 |
The 0.163" (4.14mm) pitch and matching 0.163" (4.14mm) row spacing define the contact layout for the mating header — the same pitch on both axes means the 2-row arrangement packs 8 circuits into a compact, square footprint. This is a housing-only part — the crimp terminals (male or female, ordered separately) are inserted after wire termination, then locked into the cavity with the secondary retention of the latch.
Submit an RFQ for your target quantity and delivery window.
The 794192-1 accepts male or female crimp contacts from the Mini-Universal MATE-N-LOK II series. The contacts are not included with the housing and must be ordered separately, sized to your wire gauge.
The 794192-1 mates with the corresponding Mini-Universal MATE-N-LOK II receptacle housing of the same 8-position, 2-row, 4.14mm pitch layout. The latch lock on the plug engages the matching feature on the receptacle.
