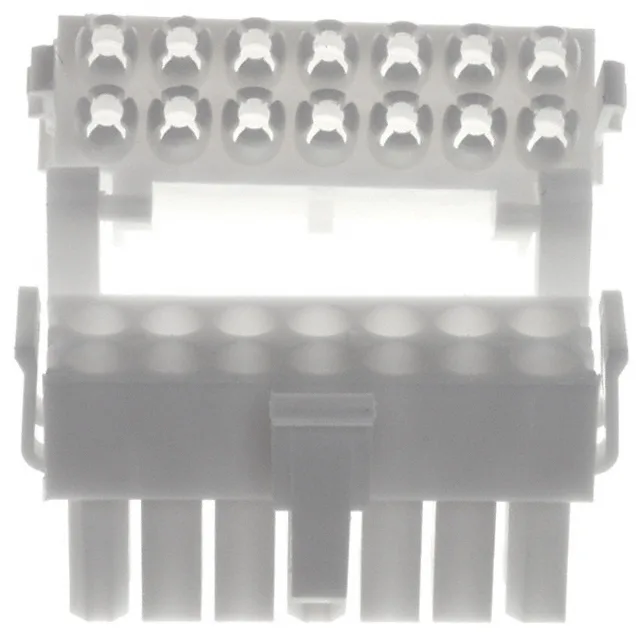

TE Connectivity Mini-Universal MATE-N-LOK II plug housing, 794202-1, 14 positions, 2 rows, 0.163" (4.14mm) pitch, free-hanging in-line, latch lock, natural nylon, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | Mini-Universal MATE-N-LOK II |
| Gender | Male or Female |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Color | Natural |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.163\" (4.14mm) |
| Package | Bulk |
| Row spacing | 0.163\" (4.14mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 14 |
The TE Connectivity 794202-1 is a 14-position plug housing from the Mini-Universal MATE-N-LOK II series, a widely used wire-to-wire and wire-to-board interconnect family. Typical applications include power distribution, appliance wiring, and automotive interior harnesses where a compact, keyed connector is needed.
The 0.163" (4.14mm) pitch and dual-row layout are standard across the series, making this a drop-in fit for existing harness designs using this family.
No — the 794202-1 is a housing only; contacts are not included. You must order the appropriate Mini-Universal MATE-N-LOK II crimp terminals separately.
The pitch is 0.163" (4.14mm) between centers, with the same 0.163" (4.14mm) row spacing.
