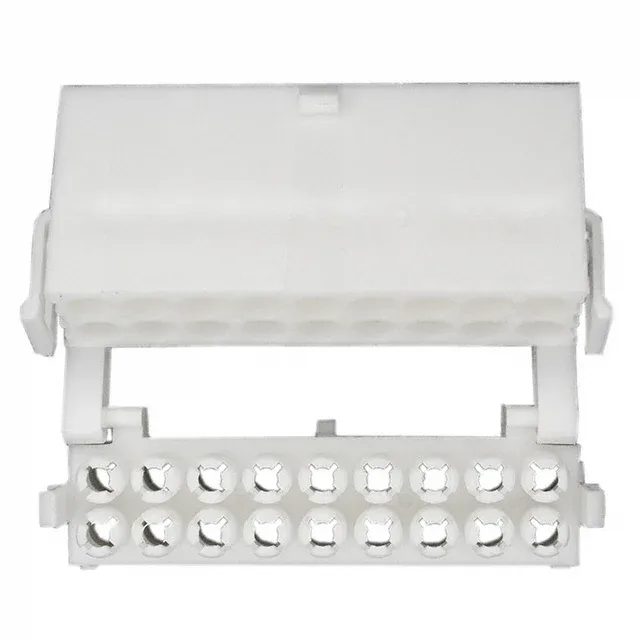

794209-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 794209-1 Mini-Universal MATE-N-LOK II Receptacle Housing

MPN794209-1
Active

TE Connectivity Mini-Universal MATE-N-LOK II receptacle housing, 18 positions, 2 rows, 0.163" (4.14mm) pitch, natural PA66, locking ramp, crimp termination, free-hanging.

$3.3600Ref. price · indicative, final on quote
794209-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

794209-1 Technical Specifications
ParameterValue
SeriesMini-Universal MATE-N-LOK II
GenderMale or Female
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
ColorNatural
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.163\" (4.14mm)
PackageBulk
Row spacing0.163\" (4.14mm)
Rows2
Contact terminationCrimp
Positions18

Product details

18-Position Receptacle Housing for Free-Hanging Harnesses

The 0.163" (4.14mm) pitch and dual-row layout match the standard Mini-Universal MATE-N-LOK II header footprint. Contacts are ordered separately (crimp terminals for male or female pins), so the BOM line for this housing is just the shell; the terminals are a separate line item.

What the Locking Ramp Means for Harness Assembly

This is a field-service-friendly design — no tools needed to release, just thumb pressure on the ramp. In a free-hanging harness that gets routed through a cabinet or engine bay, the ramp prevents the connector from walking apart under cable tug or machine vibration. The 0.163" (4.14mm) row spacing mirrors the pitch, keeping the contact layout square and the terminal insertion forces balanced across both rows.

Frequently asked questions

What contacts are compatible with 794209-1?

The 794209-1 accepts male or female crimp terminals from the Mini-Universal MATE-N-LOK II series. Contacts are not included with the housing — order the appropriate pin or socket terminal separately for your wire gauge.

Is 794209-1 obsolete or active?

Standard sourcing through distribution applies.
