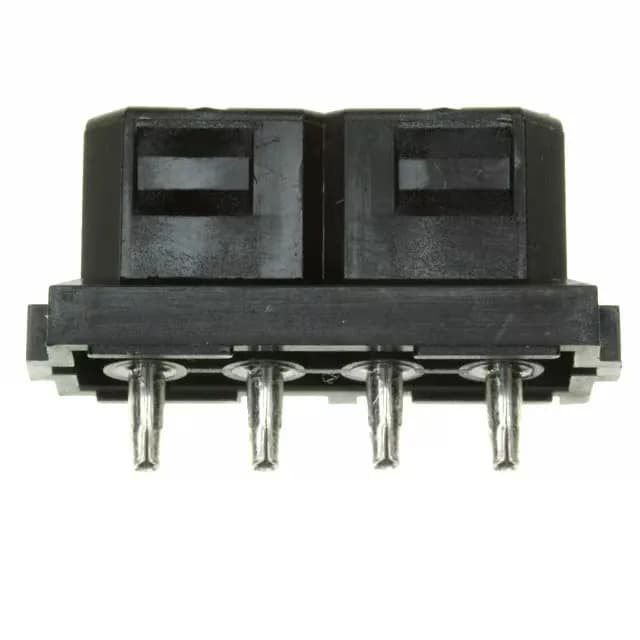

TE Connectivity AMP Connectors Commercial MATE-N-LOK, 794287-1, 4-position single-row header, 0.200" (5.08mm) pitch, tin-plated female socket contacts, through-hole solder termination, detent lock, black polyamide housing.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.455\" (11.56mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.170\" (4.32mm) |
| Contact finish - mating | Tin |
The 794287-1: It uses a 0.200" (5.08mm) pitch — wide enough to route moderate current without tight trace spacing, and the single row keeps the PCB footprint compact for a 4-circuit interconnect.
As a header with female socket contacts, this part mates with a male pin header of the same Commercial MATE-N-LOK series, 4 circuits, 0.200" pitch.
The mating half is a receptacle housing that accepts the female socket contacts.
Yes, the 794287-1 is ROHS3 Compliant, meeting current European material restrictions without a waiver.
