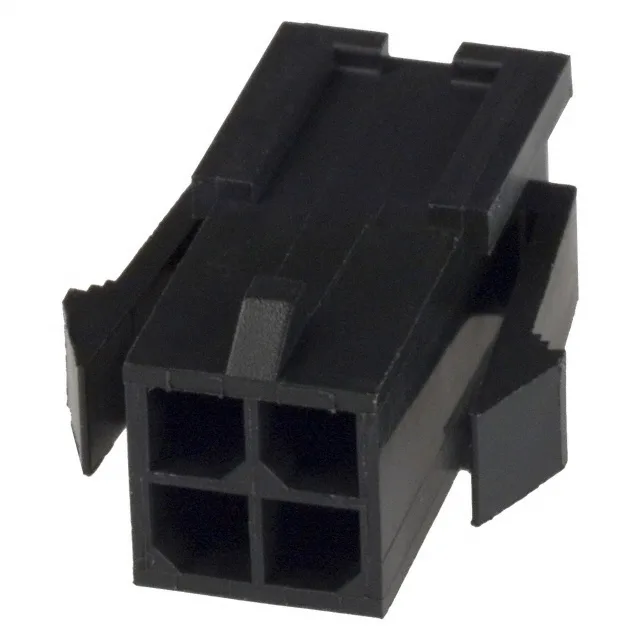

794615-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 794615-4 Micro MATE-N-LOK Plug Housing, 4 Pos, 3.00mm

MPN794615-4
Active

TE Connectivity Micro MATE-N-LOK plug housing, 794615-4, 4 positions, 2 rows, 0.118" (3.00mm) pitch, black PA66, panel mount snap-in, locking ramp, crimp termination, contacts not included.

$0.6000Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

794615-4 Technical Specifications
ParameterValue
SeriesMicro MATE-N-LOK
GenderMale Pin
Mounting typePanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Row spacing0.118\" (3.00mm)
Rows2
Contact terminationCrimp
Positions4

Product details

Micro MATE-N-LOK Plug Housing — 4-Position, 3.00 mm Pitch

The 794615-4: This is a housing-only part — the male pin crimp contacts are ordered separately. The panel mount, snap-in feature allows the plug to be secured directly into a panel cutout, with the locking ramp holding the mated pair together against vibration. The 0.118" (3.00 mm) pitch and 0.118" (3.00 mm) row spacing give enough room for 20-24 AWG wire routing without crowding the cavity.

The plug mates with the corresponding Micro MATE-N-LOK receptacle housing (female socket contacts). The snap-in panel mount feature secures the plug to a panel before the harness is mated, simplifying assembly in tight enclosures.

Frequently asked questions

Where can I buy the TE 794615-4 plug housing?

Submit a quote request for current pricing and availability — confirmed at quote time.

Does 794615-4 include contacts?

No — the listing explicitly states 'Contacts Not Included'. The male pin crimp terminals must be ordered separately to complete the connector assembly.

What is the pitch of 794615-4?

The pitch is 0.118" (3.00 mm), with the same 0.118" (3.00 mm) row spacing between the two rows of cavities.
