Board lock and shrouding
The 794619-6: Mates with the matching Micro MATE-N-LOK receptacle housing and accepts the appropriate crimp terminal — the pitch is 0.118" (3.00mm) and row spacing is the same, so the footprint is shared across the series.
TE 794619-6 Micro MATE-N-LOK Header, 6-Pos, 3.00mm
MPN794619-6
Obsolete

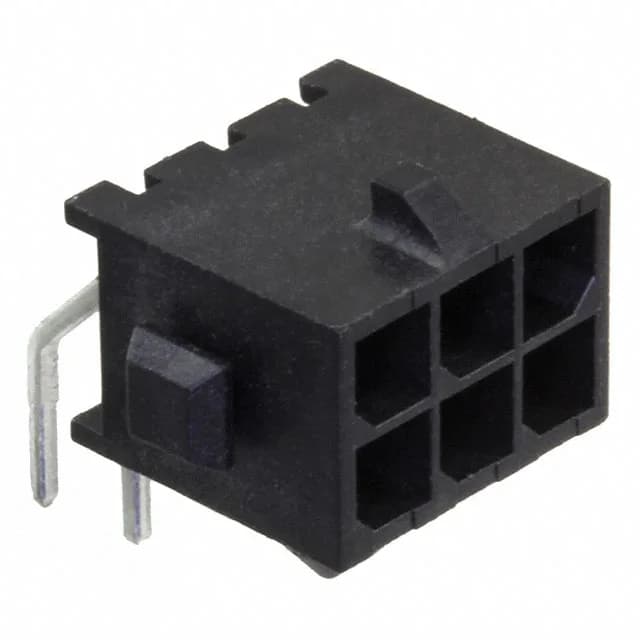

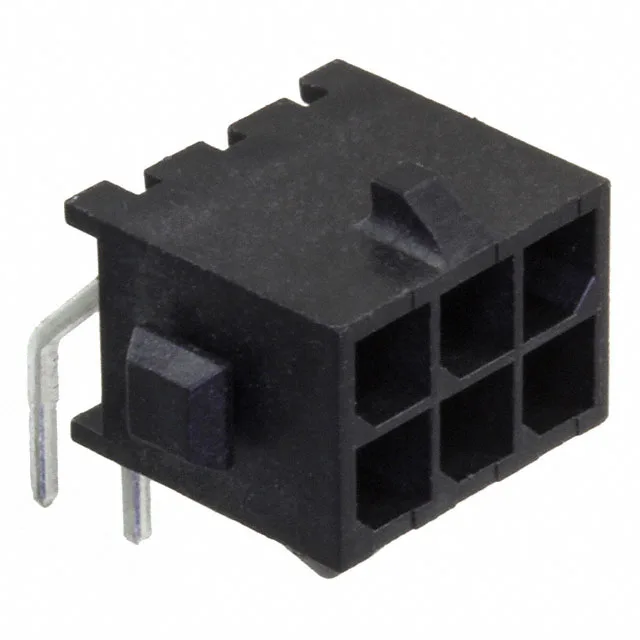

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 794619-6, 6 positions, dual row, 0.118" (3.00mm) pitch, 250V, gold-plated mating contacts, through-hole right-angle, solder termination.
$0.5800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
How can I order the 794619-6 or check stock?
The 794619-6 is classified as Obsolete. Submit a request for current availability.
What is the closest pin-compatible alternative to the 794619-6?
A different part number with a different package and pinout would require a board spin.
