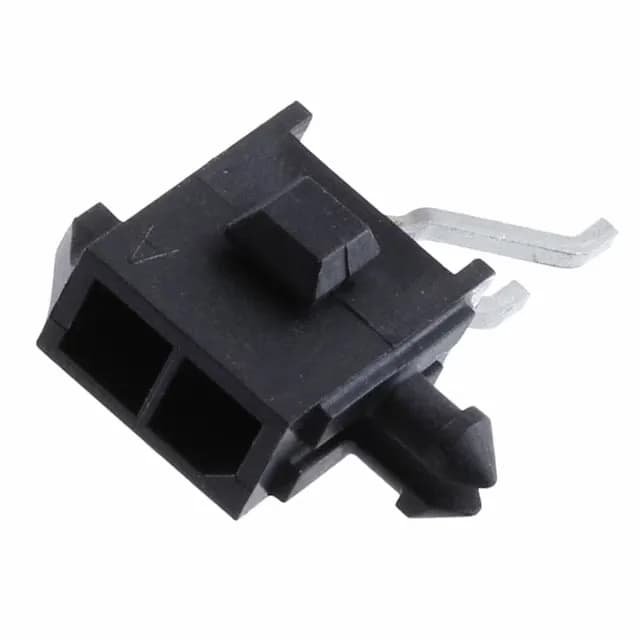

794622-2 TE Connectivity Micro MATE-N-LOK Header, 2 Pos, SMT

MPN794622-2
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2 circuits, 2-row, right-angle SMT, shrouded 4-wall, gold mating finish, board lock, UL94 V-0.

$0.4900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 794622-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

794622-2 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

794622-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Positions2
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 794622-2: The solder tails carry a tin-lead finish at 100.0 µinch (2.54 µm), compatible with standard leaded solder processes.

No official replacement or successor part number has been issued for this exact 2-position, right-angle SMT header. For a BOM that requires this specific pinout and footprint, the only sourcing path is through independent distribution — available on a per-RFQ basis against confirmed inventory lots.

Voltage rating is 250 V, typical for signal-level interconnects in this series.

Frequently asked questions

Is 794622-2 obsolete?

Yes, TE Connectivity has marked the 794622-2 as Obsolete. There is no direct replacement from the original manufacturer. The part is available through independent surplus channels — quantities are confirmed at RFQ.

Where can I buy 794622-2?

The 794622-2 is sourced through independent distribution against the BOM quantity. Submit an RFQ to check lot availability.

Does 794622-2 have a board lock feature?

Yes, the 794622-2 includes a board lock feature.

What is the pinout of 794622-2?

The 794622-2 is a 2-position, 2-row header with all positions loaded. The pinout follows the standard Micro MATE-N-LOK layout — the two pins are arranged in a single row (one per row) with a 0.118" (3.00 mm) row spacing. The mating receptacle and crimp terminals from the same series complete the connection.
