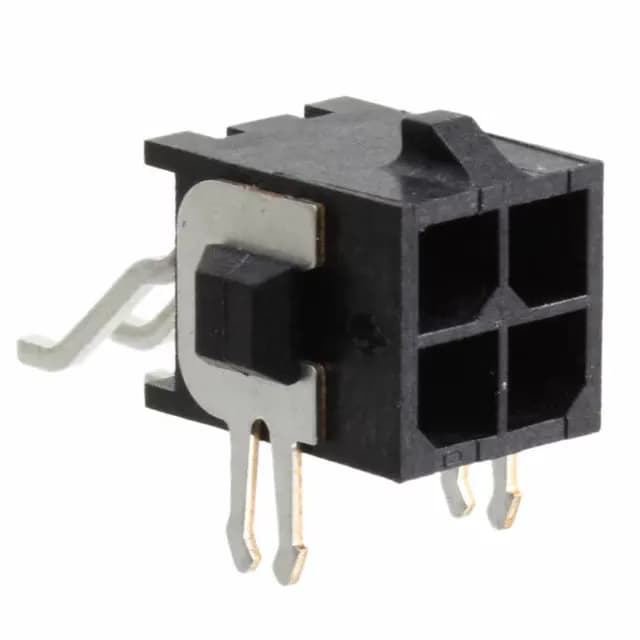

794625-4 TE Connectivity Micro MATE-N-LOK Header, 4-Pos

MPN794625-4
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 4 positions, 2 rows, 0.118" (3.00mm) pitch, SMT right-angle, shrouded 4-wall, gold-plated male pins, board lock, UL94 V-0, -40°C~105°C, 250V.

$0.5400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 794625-4 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

794625-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

794625-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions4
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board Fit: 3.00 mm Pitch, 4 Positions, SMT Right-Angle

The 794625-4: Two rows with 4 positions loaded all, row spacing also 0.118" (3.00 mm).

Contact Interface: Gold Plating and Mating Cycles

The post finish is tin-lead, compatible with leaded solder processes.

Locking and Environmental Ratings

The 4-wall shrouded housing protects the pins from accidental stubbing during handling.

This header mates with Micro MATE-N-LOK receptacle housings (series). The matching crimp terminals are part of the same family — the base product number 794625 is the starting point for the full kit.

Frequently asked questions

What is the replacement for 794625-4?

No pin-compatible successor is listed by TE Connectivity. A board-level redesign may be required for a direct replacement. Contact us with your BOM quantity and we can help identify alternatives from the Micro MATE-N-LOK family or other series.

What is the pitch of 794625-4?

The mating pitch is 0.118" (3.00 mm) with the same row-to-row spacing. This sets the PCB footprint for the 4-position, 2-row layout.

What is the mating connector for 794625-4?

It mates with Micro MATE-N-LOK receptacle housings. The matching crimp terminals are part of the same family — confirm the receptacle part number and terminal wire gauge range separately.
