TE Connectivity AMP Connectors 794626-4 — Pin Headers, Sockets & Housings

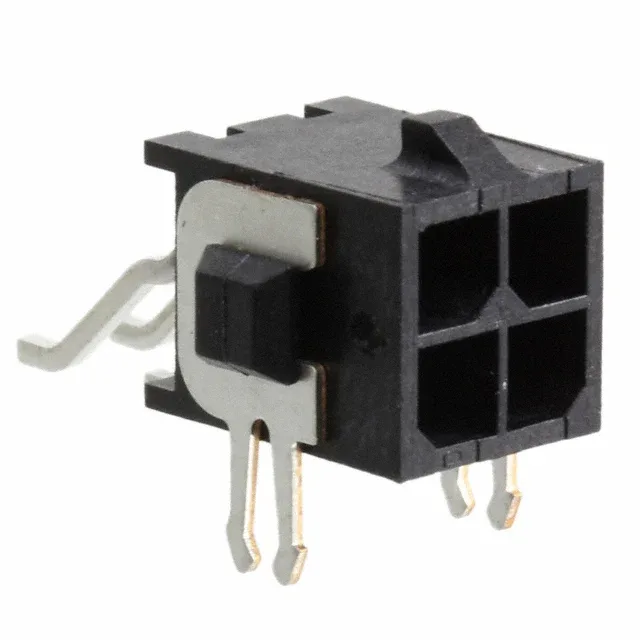

794626-4 TE Micro MATE-N-LOK Header, 4 Pos, Obsolete

MPN794626-4
Obsolete

TE Connectivity Micro MATE-N-LOK header, 794626-4, 4 circuits, 2-row, 3.00mm pitch, SMT right-angle, gold-plated male pins, shrouded with locking ramp and board lock, UL94 V-0, -40°C to 105°C, 250V rating.

$0.4500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 794626-4 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

794626-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

794626-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions4
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

4-circuit SMT right-angle header with locking ramp

It uses a 3.00mm pitch and mates with the corresponding Micro MATE-N-LOK receptacle housing.

Gold-plated contacts and board lock for reliable termination

The solder tails are tin-lead (100.0µin) for a reliable solder joint.

Obsolete — sourcing per RFQ

The 794626-4 is listed as Obsolete. No official successor is recorded in the TE portfolio. For current pricing and availability, submit an RFQ — we source this part against your BOM quantity from our multi-supplier network.

Frequently asked questions

How can I order 794626-4 or check stock?

794626-4 is obsolete, but we can source it against your BOM quantity. Submit an RFQ for current pricing and availability — we confirm lead time and price per your order at quote time.

What is the replacement for 794626-4?

No official replacement is listed. The Micro MATE-N-LOK series has active 3.00mm pitch headers with similar features — check the 794626 base number for newer variants, or contact us with your mating half and we'll recommend a pin-compatible substitute.

Does 794626-4 have a locking ramp?

Yes, the header includes a locking ramp on the shroud for secure mating with the receptacle.
