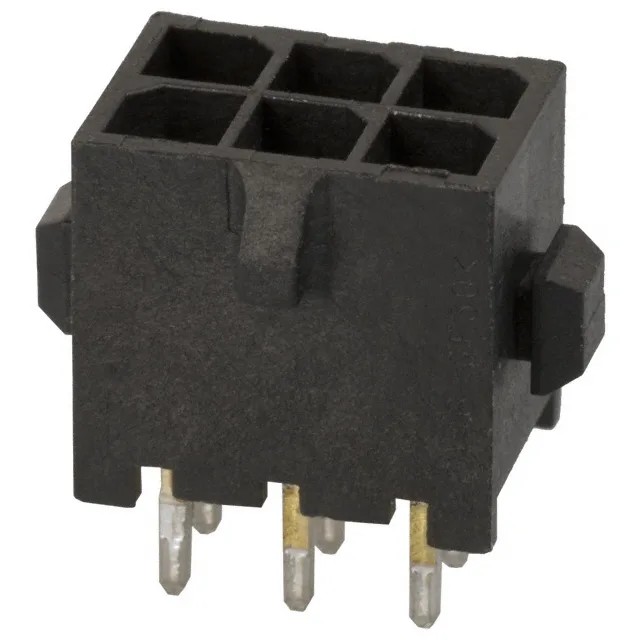

794631-6 TE Micro MATE-N-LOK Header, 6 Pos, 3.00mm, Obsolete

MPN794631-6
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK, 794631-6, Board to Cable/Wire header, 6 positions, 2 rows, 3.00mm pitch, shrouded 4-wall, locking ramp, gold-plated male pins, press-fit/solder termination, UL94 V-0.

$1.7300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 794631-6 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

794631-6 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

794631-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions6
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

6-Position Micro MATE-N-LOK Header – Obsolete, Sourced Per RFQ

The 794631-6: The housing is fully shrouded with four walls and a locking ramp, providing positive retention against vibration-induced disconnection.

Mating and Termination – Press-Fit/Solder, Locking Ramp

The press-fit/solder termination allows the header to be pressed into plated through-holes before reflow, with the solder tail length of 0.125" (3.18mm) clearing typical 1.6mm PCBs. The 3.00mm pitch and 0.118" row spacing mean the board layout uses standard 0.100" grid drilling — no special tooling needed. The insulation height of 0.364" (9.25mm) leaves clearance for mating receptacle wire dress under the connector body.

Compliance and Material – UL94 V-0, Gold Mating Finish

The gold mating finish (15.0µin) provides corrosion resistance in non-sealed environments — not rated for washdown or high-humidity submersion.

Frequently asked questions

What is the pitch and circuit count of 794631-6?

The pitch is 3.00mm (0.118") on both the mating interface and row spacing. It has 6 positions in a 2-row configuration, all positions loaded.

Is 794631-6 compatible with Micro MATE-N-LOK connectors?

Yes, it is part of the Micro MATE-N-LOK series. It mates with receptacle housings from the same series, such as the 794617 family, using the locking ramp for retention.

How can I order 794631-6 or check stock?

Submit an RFQ for current availability and pricing — confirmed at quote time.
