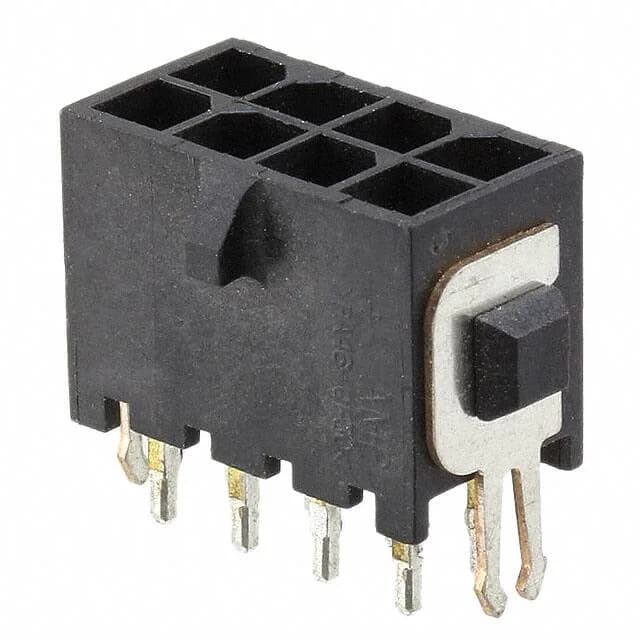

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 794680-8, 8 positions, dual row, 0.118" (3.00mm) pitch, 250 V, tin-lead mating contacts, through-hole, solder termination, shrouded - 4 wall, board lock.
TE 794680-8 Micro MATE-N-LOK Header, 8 Pos, Obsolete
MPN794680-8
Obsolete
TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 794680-8, 8 positions, dual row, 0.118" (3.00mm) pitch, 250 V, tin-lead mating contacts, through-hole, solder termination, shrouded - 4 wall, board lock.
$0.6500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
How can I check current pricing and availability for 794680-8?
Submit an RFQ for the 794680-8. Availability is confirmed per lot through surplus channels.
