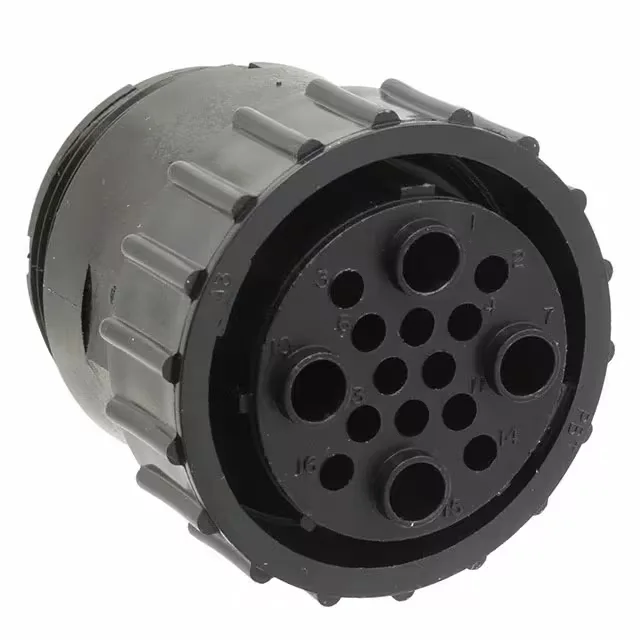

TE Connectivity AMP Connectors 796203-1
MPN796203-1
Active
CONN PLG HSG FMALE 16POS INLINE
$27.7Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCPC Series 6
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Female Sockets |
| Series | CPC Series 6 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug Housing |
| Fastening type | Threaded |
| IP rating | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Shell material | Polyamide (PA), Nylon |
| Insert material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Coupling Nut |
| Shielding | Unshielded |
| Orientation | Keyed |
| Contact size | 16 (12), 8 Power (4) |
| Contact shape | Circular |
| Positions | 16 (12 + 4 Power) |
| Shell size - insert | 23-16 |
