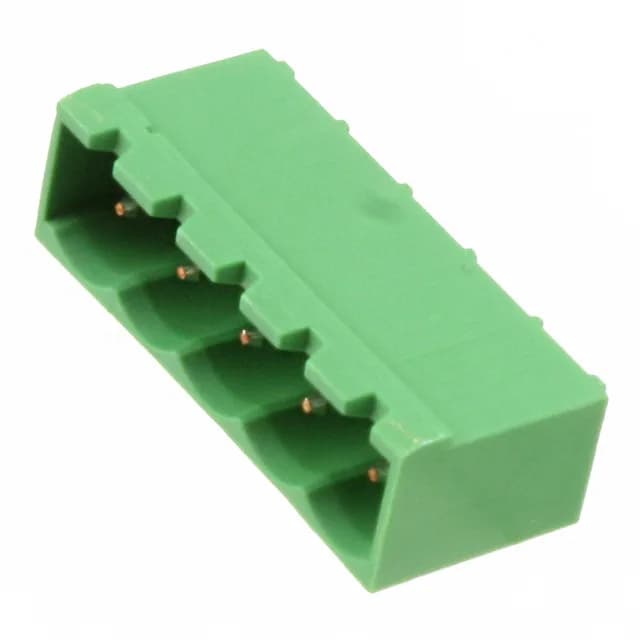

TE Connectivity AMP Connectors Termi-Blok, Buchanan header, order code 796638-5, 5 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Termi-Blok, Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The 796638-5 is the 5-position member of TE's Termi-Blok Buchanan shrouded header line, a through-hole right-angle part with 0.200" (5.08mm) pitch between positions. Rated 15 A at 300 V with tin-plated copper alloy contacts, the header carries a UL94 V-0 polyamide housing in green and operates from -40°C to 110°C.
The header has 5 positions on a single level at 0.200" (5.08mm) pitch. The positions per level match the total position count at 5.
