TE Connectivity AMP Connectors 796692-7

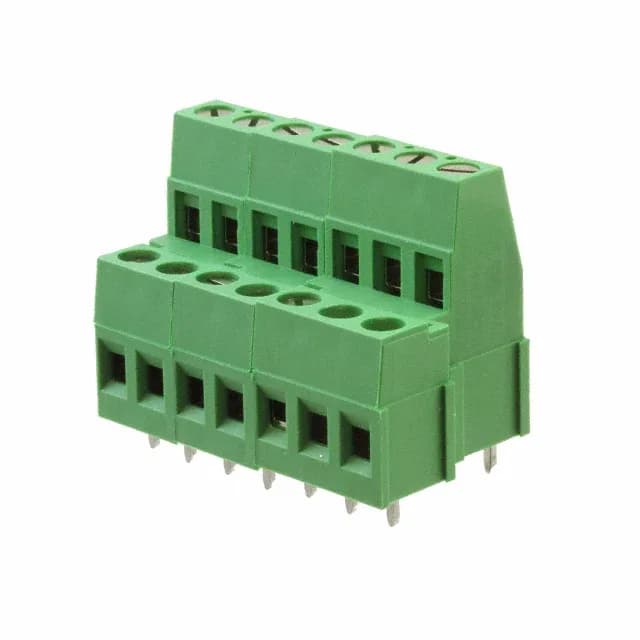

796692-7 Buchanan Terminal Block, 7 Pos, 5.08mm, 17.5A

MPN 796692-7
Active

TE Connectivity Buchanan 796692-7, 7 positions per level, 2 levels, 5.08mm pitch, 17.5A, 300V, green, through hole, rising cage clamp, M3 screw.

$11.7800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796692-7 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Tin Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.200\" (5.08mm)

All specifications

796692-7 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels2
Mating orientationHorizontal with Board
Positions per level7

Product details

The TE Connectivity Buchanan 796692-7 is a two-level PCB-mount terminal block with 7 positions per level, giving you 14 circuits in a single component. The green housing is standard for ground or chassis connections in many panel designs, though it's also used for general-purpose termination. The rising cage clamp termination (M3 screw, 0.79 Nm torque) accepts 12-30 AWG wire, which covers everything from 2.5 mm² power feeds to fine signal wires.

If you're running near that current in a warm enclosure, derate per the manufacturer's curve. The M3 screw torque spec of 0.79 Nm (7.0 Lb-In) is important — under-torque it and the wire can pull out; over-torque it and you strip the threads in the nylon housing. Use a torque screwdriver set to that value.

Interlocking Side Feature for Multi-Pole Assemblies

The interlocking side feature means you can snap multiple 796692-7 blocks together side-by-side to create a longer terminal strip without extra brackets or end plates. The blocks lock together mechanically, and the pitch stays consistent across the assembly. This is useful when you need, say, 21 positions — three blocks ganged — instead of a single larger part. The interlocking is a positive snap, so it holds during handling and soldering.

How 796692-7 Compares to 796692-6

The 796692-7 (7 positions per level) and 796692-6 (6 positions per level) are otherwise identical — same 5.08 mm pitch, same 17.5 A / 300 V rating, same green housing, same rising cage clamp. The choice is purely about how many circuits you need per block. If your BOM calls for 12 circuits, two 796692-6 blocks interlocked give you 12 positions; if you need 14, two 796692-7 blocks interlocked give you 14. No other spec difference.
