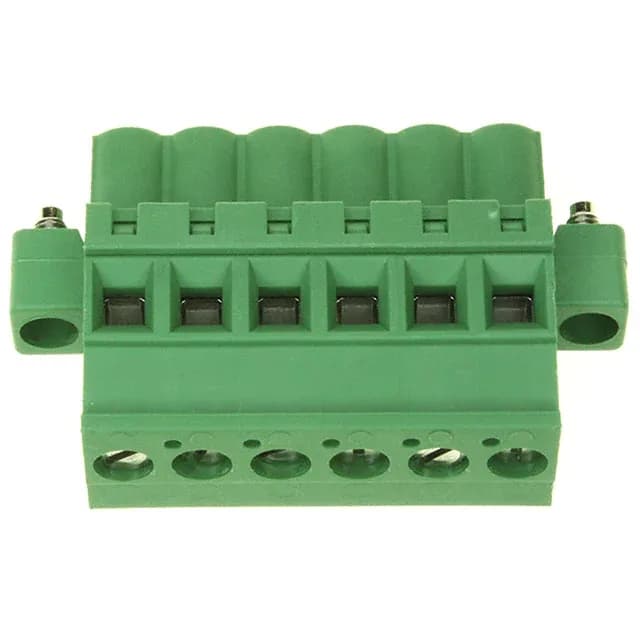

TE Connectivity AMP Connectors Buchanan series 796861-6, 6-position single-level plug with female sockets, 0.200" (5.08 mm) pitch, rated 15 A at 300 V, tin-plated phosphor bronze contacts, screw rising cage clamp termination, free-hanging inline mount, green PA66 housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 270° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 0.984\" (25.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The 796861-6: Rated 300 V, the plug suits industrial control panels, HVAC equipment, and lighting systems where reliable field termination is required. The 270° wire entry allows angled routing in tight enclosures, and the mating flange with retention latches (non-wire side) locks the plug into the mating header, resisting vibration.
This is a standard pitch for terminal block connectors.
It accepts 12-30 AWG wire. The screw rising cage clamp termination works with solid or stranded wire; strip length is 6-7.5 mm.
RoHS compliance is standard for TE Connectivity AMP Connectors products in this series, but specific certification should be confirmed at order time. The housing is PA66 (Nylon 6/6) with UL94 V-0 flammability rating.
