TE Connectivity AMP Connectors Buchanan plug, order code 796863-2, 2 positions, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, free-hanging, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 90° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 0.984\" (25.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mating Flange, Retention Latches (Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |

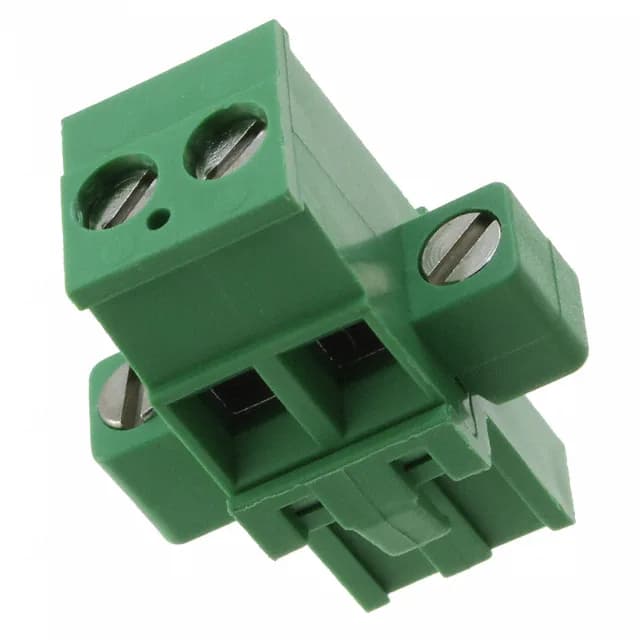

The 796863-2 is a 2-position plug from TE Connectivity's Buchanan series, a free-hanging female socket block with a green polyamide housing. Rated 15 A at 300 V, it uses a screw rising cage clamp for 12-30 AWG wire and terminates with a 6-7.5 mm strip length.
TE Connectivity AMP Connectors supplies the 796863-2.
The 796863-2 is a Plug, Female Sockets type in a Green housing.
