Right-angle shrouded header, 2 circuits

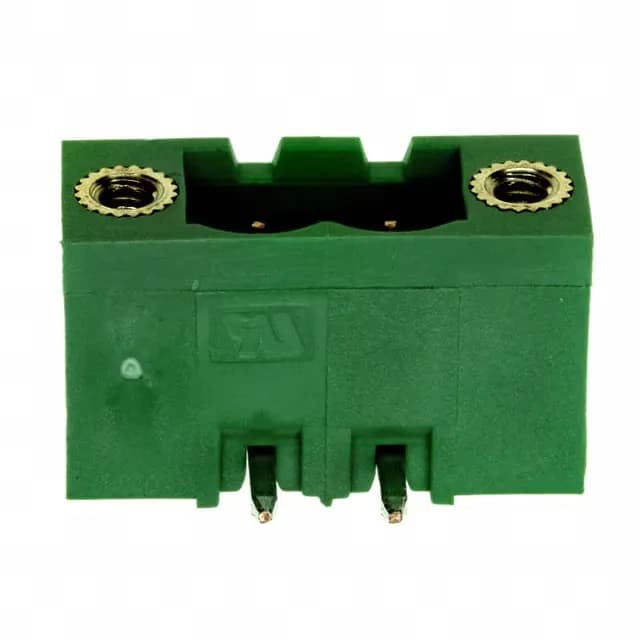

The 796864-2 is the 2-circuit member of TE Connectivity's Buchanan shrouded header line, a through-hole right-angle male pin header with a mating flange for secure panel-side engagement.
TE AMP 796864-2 Header, 2 Pos, 5.00mm, Right Angle
MPN796864-2
Active
TE Connectivity AMP Connectors Buchanan header, order code 796864-2, 2 positions, single level, 0.197" (5.00mm) pitch, 15 A, 300 V, tin-plated mating contacts, through-hole right-angle, solder termination.
$3.3400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What is 796864-2's listed type?
The 796864-2 is listed as a Header, Male Pins, Shrouded (4 Side).
What is 796864-2's listed color?
The housing color is Green.
