Shrouded 5-position header, 5.08 mm pitch
The 796867-5 is the 5-circuit member of TE Connectivity's Buchanan shrouded header line, a through-hole vertical header with tin-plated mating contacts rated 15 A at 300 V.

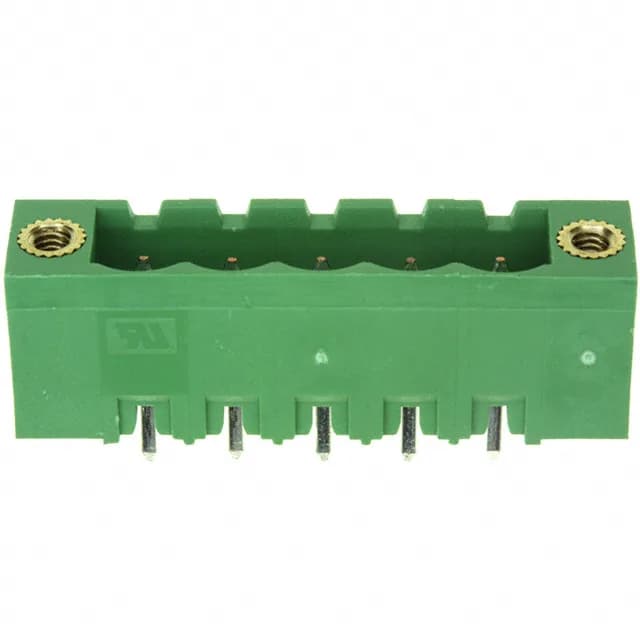

TE Connectivity 796867-5 Header, 5 Pos, 5.08mm, Buchanan
MPN796867-5
Active
TE Connectivity AMP Connectors Buchanan header, order code 796867-5, 5 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
$3.4800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.472\" (12.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What compliance documentation is available for the 796867-5?
The housing material is UL94 V-0 rated polyamide 6/6. RoHS and REACH compliance information is available from the manufacturer.
