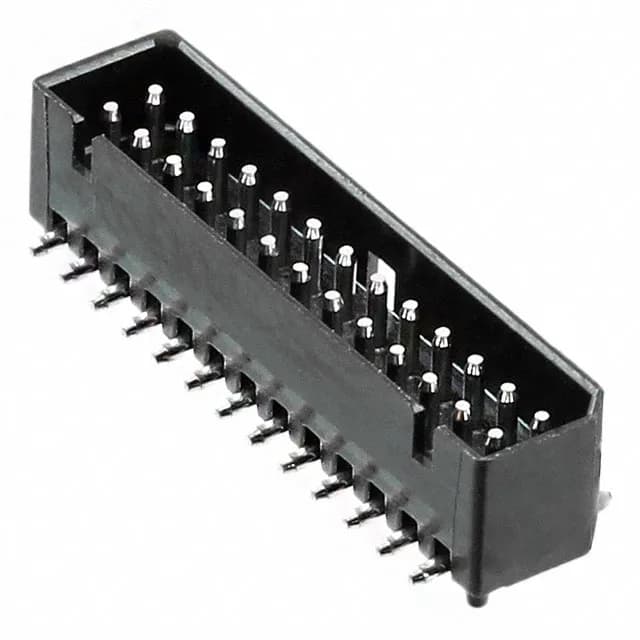

TE Connectivity Fine Pitch header, order code 8-176314-6, 26 positions, dual row, 0.049" (1.25 mm) pitch, 0.5 A, 50 V, tin-plated mating contacts, surface-mount, solder termination.
8-176314-6 Header, 26-Pos, 1.25mm Pitch, SMT
MPN8-176314-6
Active
TE Connectivity Fine Pitch header, order code 8-176314-6, 26 positions, dual row, 0.049" (1.25 mm) pitch, 0.5 A, 50 V, tin-plated mating contacts, surface-mount, solder termination.
$0.6822Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.156\" (3.96mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 26 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 31.5µin (0.80µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
