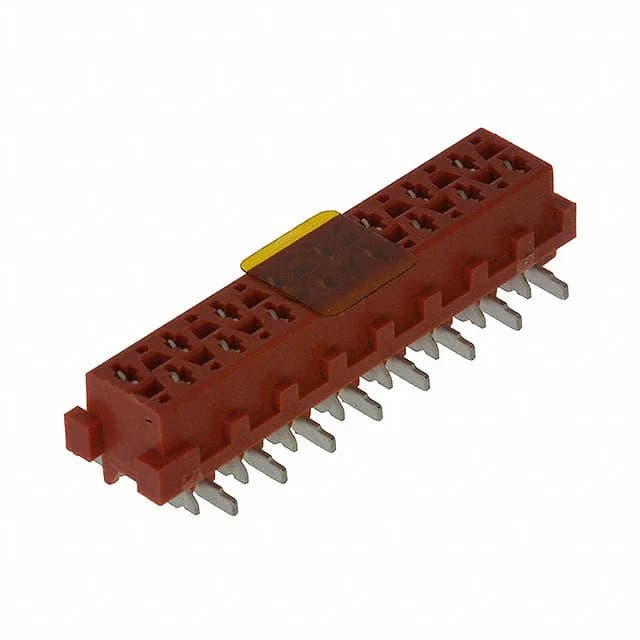

TE Connectivity AMP Connectors Micro-MaTch receptacle, 16 positions, 0.100" (2.54mm) pitch, dual-row, surface-mount, tin-plated contacts, -40°C to 105°C, UL94 V-0, active production
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The forked contact type provides a compliant beam that maintains normal force against the mating header pin, ensuring reliable contact resistance over temperature swings. The push-pull fastening allows tool-less mating and unmating, which is practical for harness connections where the operator needs to engage or disengage the pair by hand.
Submit an RFQ for the specific quantity and delivery window.
Yes, the 8-188275-6 is ROHS3 compliant per the manufacturer's listing.
The exact mating part number depends on the position count, row configuration, and mounting style required — confirm the header part against the 16-position, dual-row layout.
Within the Micro-MaTch series, the closest functional equivalent is 1-2823056-2 — same pitch, mounting, and contact plating, but with 12 positions instead of 16. For a drop-in replacement, stick with the 16-position 8-188275-6.
