TE Connectivity AMP Connectors 8-188275-8 — Female Socket Headers

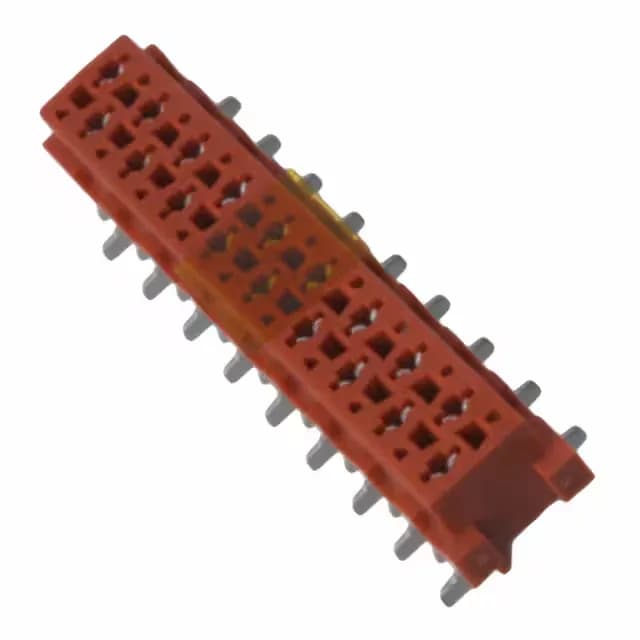

8-188275-8 TE Connectivity Micro-MaTch 18-Pin Receptacle

MPN8-188275-8
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 18 positions, 0.100" (2.54 mm) pitch, tin-plated forked contacts, surface-mount solder termination, pick-and-place compatible, rated 100 VDC, -40°C to 105°C, UL94 V-0.

$3.7100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 8-188275-8 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

8-188275-8 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

8-188275-8 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesPick and Place
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions18
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

The 8-188275-8: The forked contact design mates with square or rectangular pins of matching pitch. Rated 100 VDC, the connector suits low-voltage signal and power distribution in automotive and general-purpose equipment.

SMT assembly and pick-and-place readiness

Tin-plated solder tails are compatible with standard reflow profiles.

Cross-shop: 1-2823056-2 vs 8-188275-8

The closest functional sibling is 1-2823056-2 — a 12-position, black-housing version of the same Micro-MaTch receptacle. Both share the 0.100" pitch, dual-row layout, tin-plated forked contacts, SMD termination, and 100 V rating. The difference is position count (12 vs 18) and housing color (black vs red). For a BOM needing 18 circuits, 8-188275-8 is the direct fit.

Frequently asked questions

Does 8-188275-8 have a pick-and-place feature?

Yes — the part is designed for automated SMT assembly with a pick-and-place feature, and it is supplied in Tape & Reel packaging.
