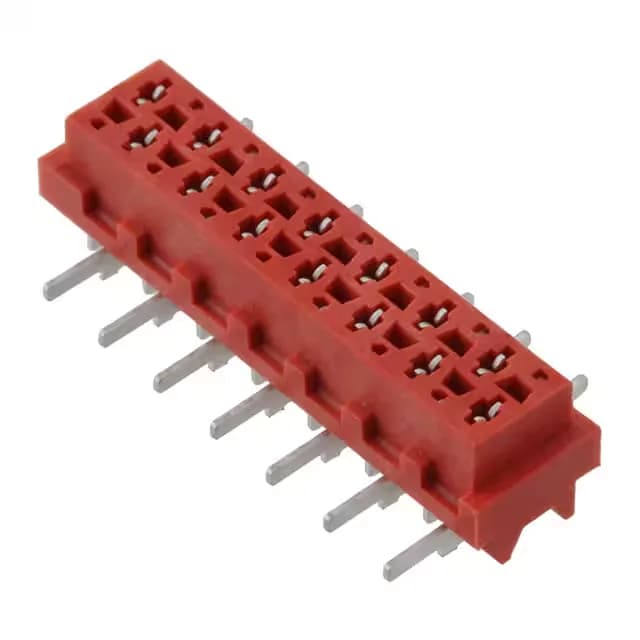

TE Connectivity AMP Connectors Micro-MaTch series, 8-188431-4, 14-position dual-row receptacle, 0.100" (2.54 mm) pitch, tin-plated forked contacts, surface-mount termination, red PA46 housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount, Through Board |
| Connector type | Receptacle, Bottom Entry |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.154\" (3.90mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 8-188431-4: Termination is solder via surface-mount pads, with the connector body designed for through-board mounting — the tails pass through the PCB and are soldered on the opposite side, giving mechanical retention beyond the SMD pads alone.
Yes, it is ROHS3 compliant.
