TE Connectivity AMP Connectors 8-1971798-3 — Pin Headers

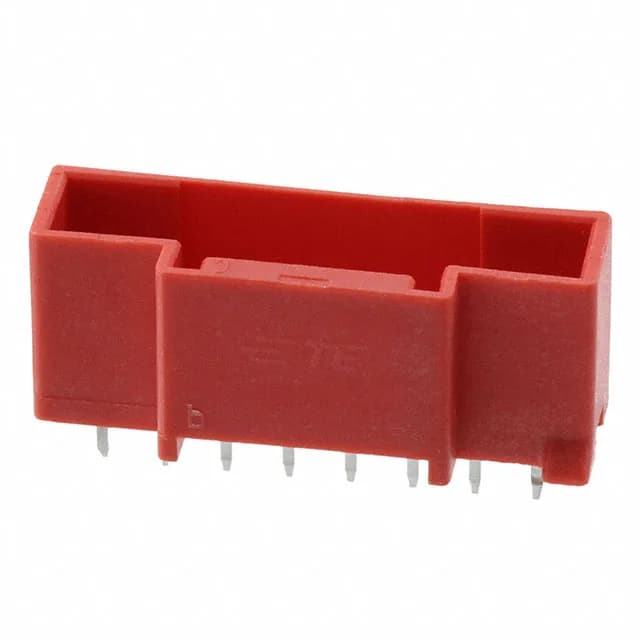

8-1971798-3 TE Connectivity Header, 8 Pos, 2.5mm

MPN8-1971798-3
Active

TE Connectivity AMP Grace Inertia, GIC series, 8-1971798-3, Board to Cable/Wire, Header, Male Pin, 8 Positions, 1 Row, 2.50mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Holder, Tin Contacts, UL94 V-0, Red Insulation, -30°C to 105°C, 50V.

$0.4700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 8-1971798-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesGrace Inertia, GIC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

8-1971798-3 key specifications
ParameterValue
SeriesGrace Inertia, GIC
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating50V
Current ratingVaries by Wire Gauge
Operating temperature-30°C ~ 105°C
Contact materialCopper Alloy
Insulation colorRed
Insulation height0.346\" (8.80mm)
Insulation materialThermoplastic

All specifications

8-1971798-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions8
Contact finish - postTin
Contact finish - matingTin

Product details

2.50mm pitch, 8-position, single-row header with latch holder

It carries 8 positions in a single row on a 2.50mm pitch — the pitch sets the board footprint and the per-contact current ceiling, which here varies by wire gauge. Rated for operation from -30°C to 105°C and 50V, this header suits general-purpose applications in industrial control, consumer appliances, and automotive interior environments where a reliable, keyed connection is needed.

Through-hole solder termination with board guide

Contact material is copper alloy, and the insulation is red thermoplastic.

Frequently asked questions

Is 8-1971798-3 compatible with the Grace Inertia series?

Yes, the 8-1971798-3 is part of the TE Grace Inertia (GIC) series. It mates with the corresponding Grace Inertia receptacle housing and uses the standard GIC crimp terminals. The latch holder on this header engages with the receptacle latch for a secure connection.

What is the pitch of 8-1971798-3?

The mating pitch is 0.098" (2.50mm). This is the center-to-center spacing between adjacent pins, and it determines the PCB footprint and the mating receptacle pitch.

Is 8-1971798-3 through hole or surface mount?

Through hole.
